LF850 Large
Lead Free* MasterSeries In-Line Double Check Valve Assembly Backflow Preventers - Large Diameter

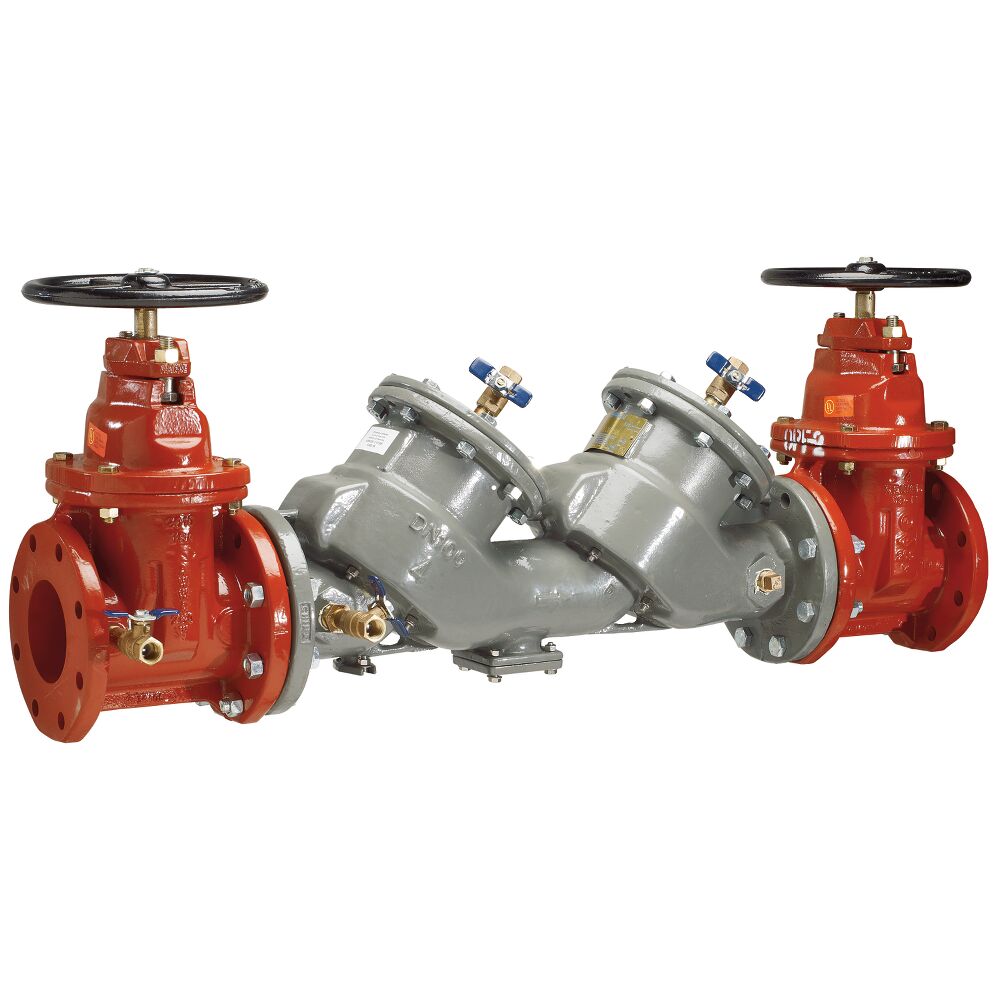

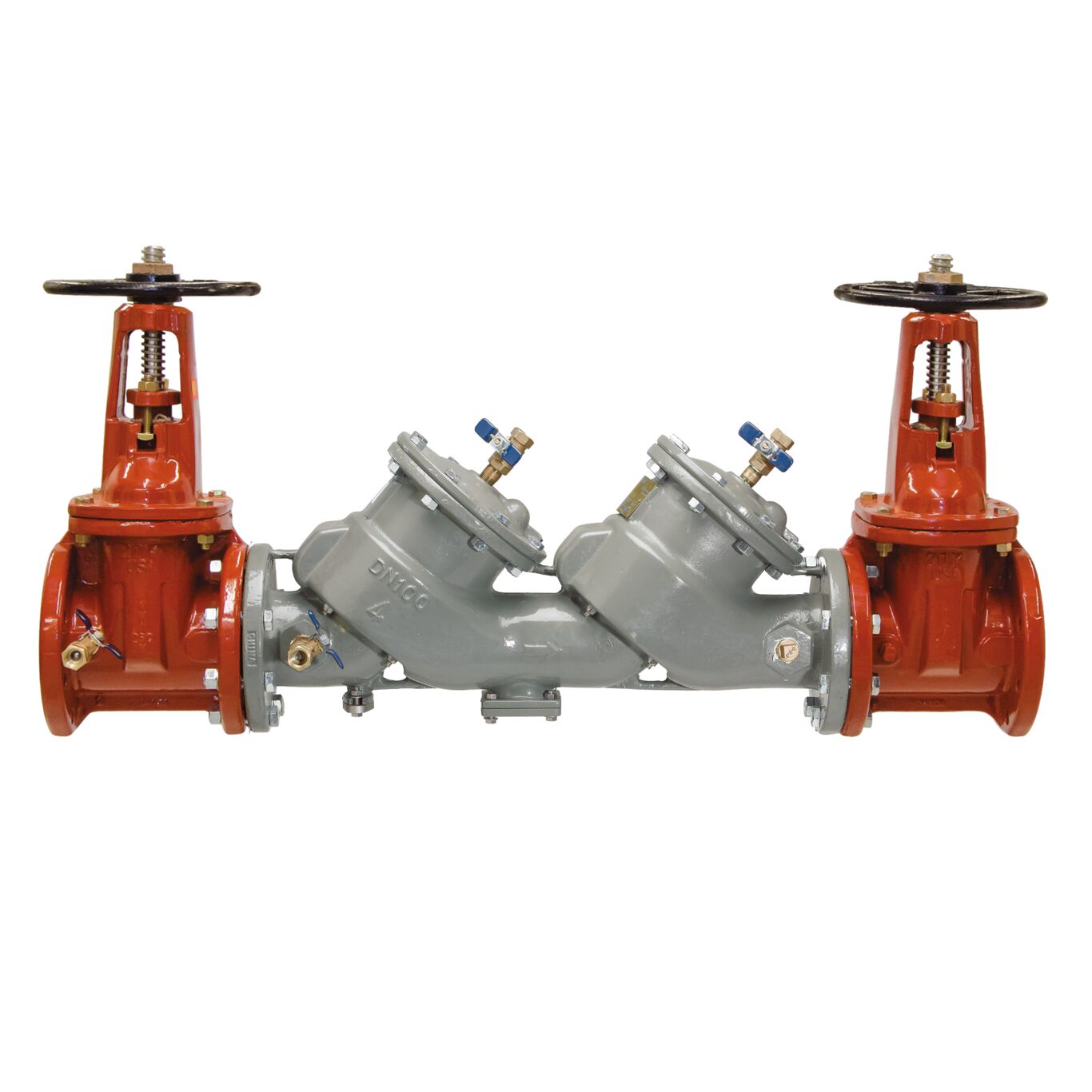

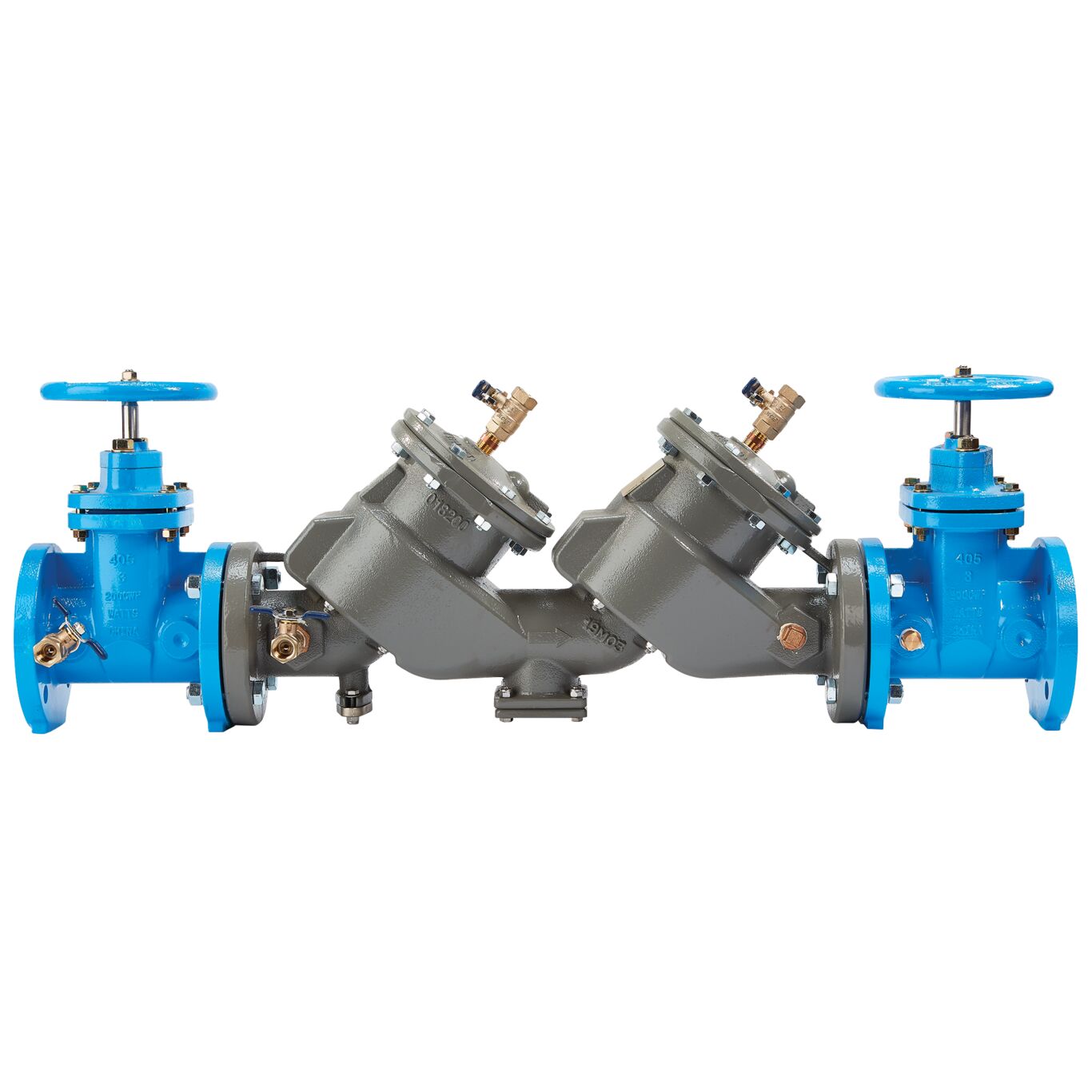

MasterSeries LF850 Lead Free* double check valve assembly backflow preventers are designed to prevent the backflow of pollutants that are objectionable but not toxic, from entering into the potable water supply. This assembly consists of a fused epoxy coated ductile iron body using ArmorTek coating technology for advanced corrosion resistance and NRS resilient wedge gate valves. Optional OSY RW gate valves are available. Maximum working pressure: 175psi (12.1 bar).
The coating on this backflow assembly uses ArmorTek™ technology to resist corrosion due to microbial induced corrosion (MIC) or exposed metal substrate.
Features
- Prevents the backflow of pollutants that are objectionable (non-toxic) from entering into the potable water supply
- Primarily used on potable drinking water systems where code mandates protection from backpressure and backsiphonage conditions
- Utilizes advanced ArmorTek coating technology to resist corrosion of internals
- The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Inline serviceable assembly requires no special tools
- Winterization feature with disc retainers and valve body drain ports
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LF850 Large
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
