STR-BMS-Class 600
×
![]()
Part of the SentryPlus Alert Technology-Strainers Series
Ordering Code: M6763128
UPC: 643925582383
Lead Free: Not In Scope

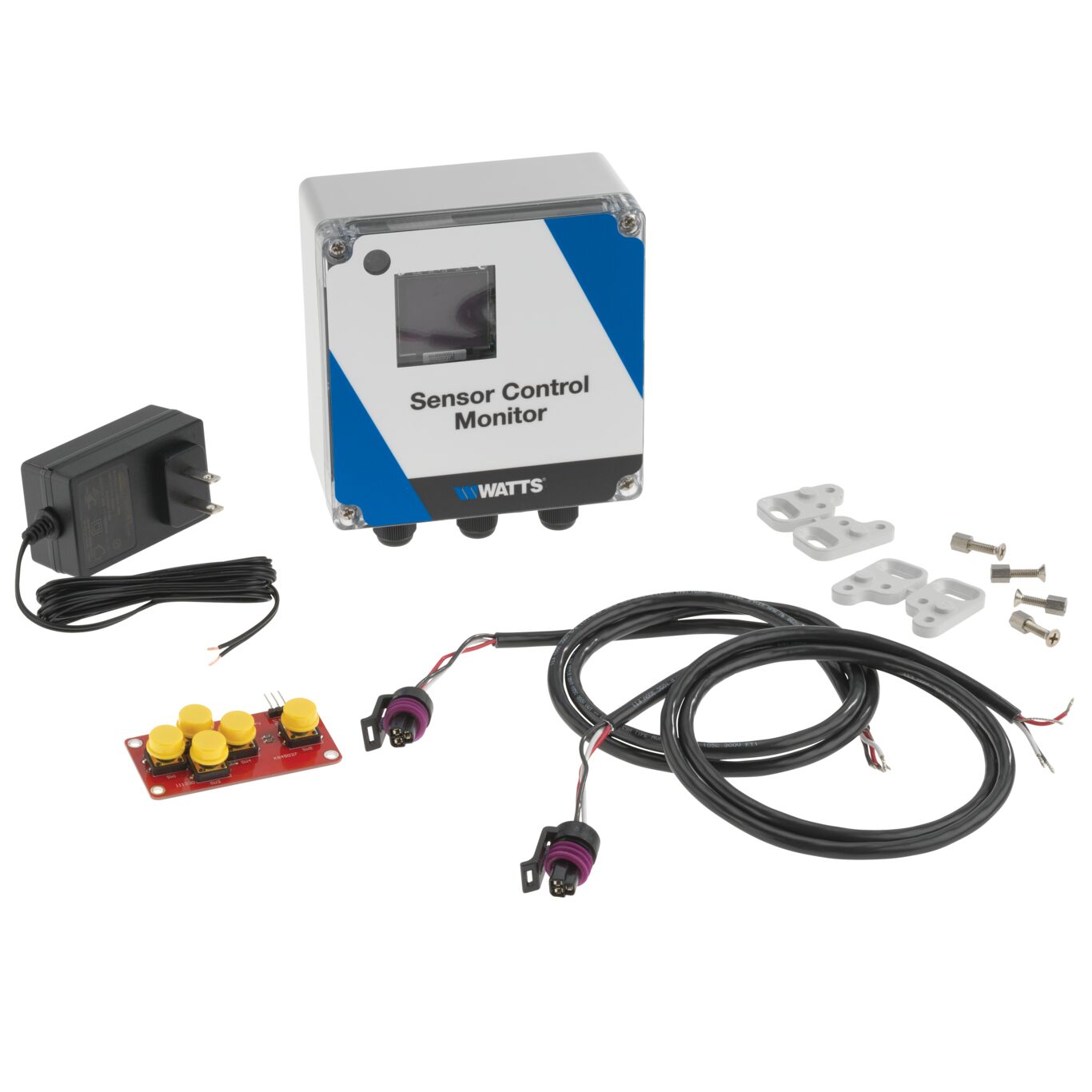

BMS Monitoring Connection Kit for Class 250/300/600 Smart Strainers, Sensor Control Monitor with 2 Sensor Cables, and Power Adapter
This BMS monitoring connection kit is a turnkey solution for transmitting strainer pressure measurements to a building management system (BMS). It includes a sensor control monitor with two sensor cables, and power adapter. This kit should be purchased to enable monitoring and streaming for Smart strainer models 758G SM, 752 SM, 794 SM, and 796 SM.
Features
- Includes a sensor control monitor with 2 sensor cables, and power adapter
- Communicates with BMS by using R-485 MODBUS or BACnet
- A solution for monitoring pressure drop across the strainer screen
- Alerts triggered when pressure drop exceeds a preconfigured threshold
- Plug-and-play connection to strainer assembly and BMS
- IP66 rated enclosure
| Specifications | |
|---|---|
| Communication Type | BMS |
| Kit Type | Activation Kit |
| Lead Free | Not In Scope |
| Product Group | DUPLEX STRAINER - IMPORT |
