919

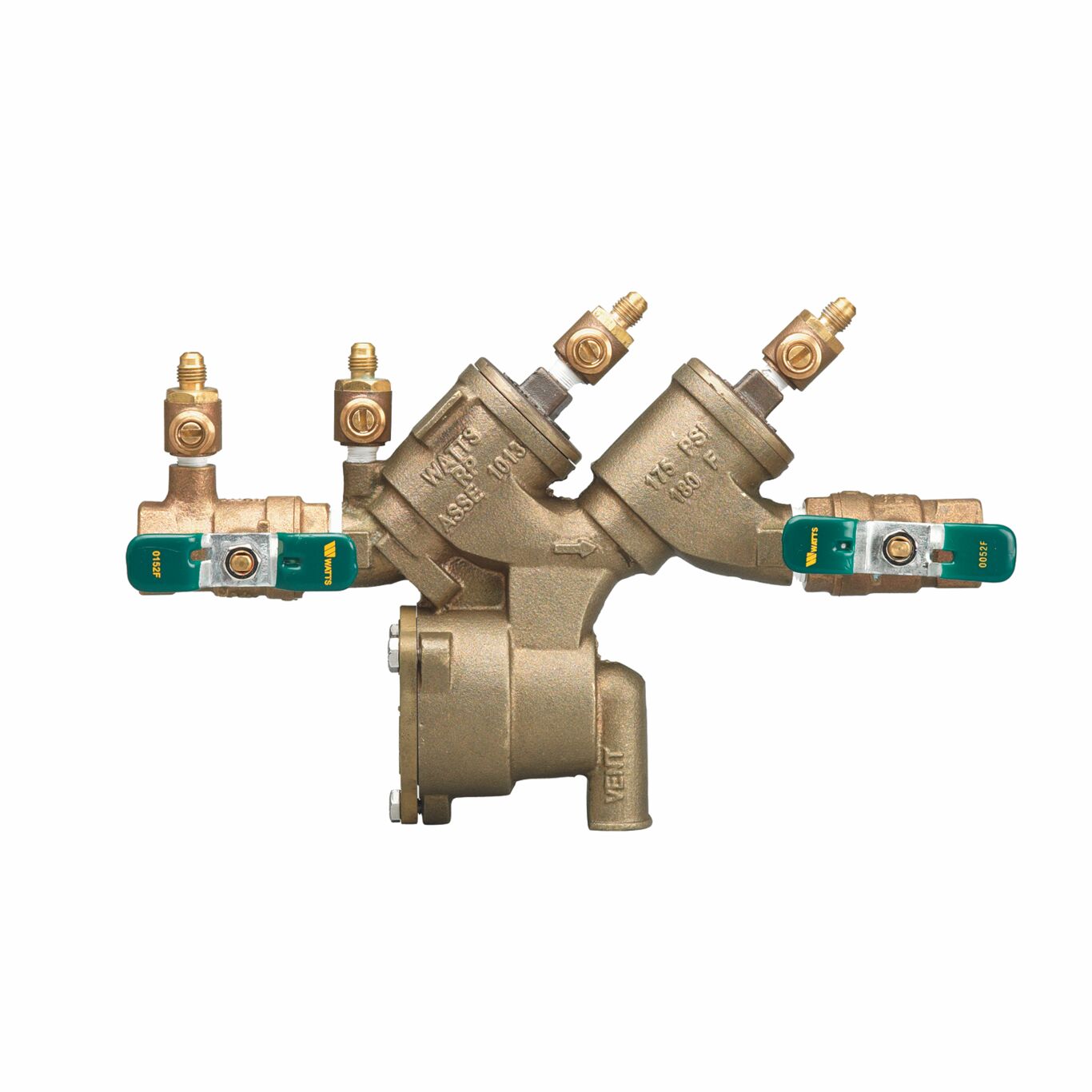

Reduced Pressure Zone Assembly Backflow Preventers, Bronze
Series 919 Reduced Pressure Zone Assembly Backflow Preventers are designed to prevent the reverse flow of contaminated water from entering into the potable water supply due to backsiphonage and or backpressure. They have a bronze body construction, two poppet style check valves, and replaceable check seats, with an intermediate relief valve. Series 919 compact modular design facilitates easy maintenance and assembly access. It is ideal for protection at health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements. Maximum Working Pressure: 175psi (12.06 bar).
Features
- Separate access covers for the check valves and relief valve for easier maintenance
- Innovative plastic seat guides and check valve plastic cover bushing for trouble-free guiding
- Bottom-mounted relief valve reduces installation clearances
- Top-mounted test cocks reduce installation clearances and make testing easier
Literature
Select a Model

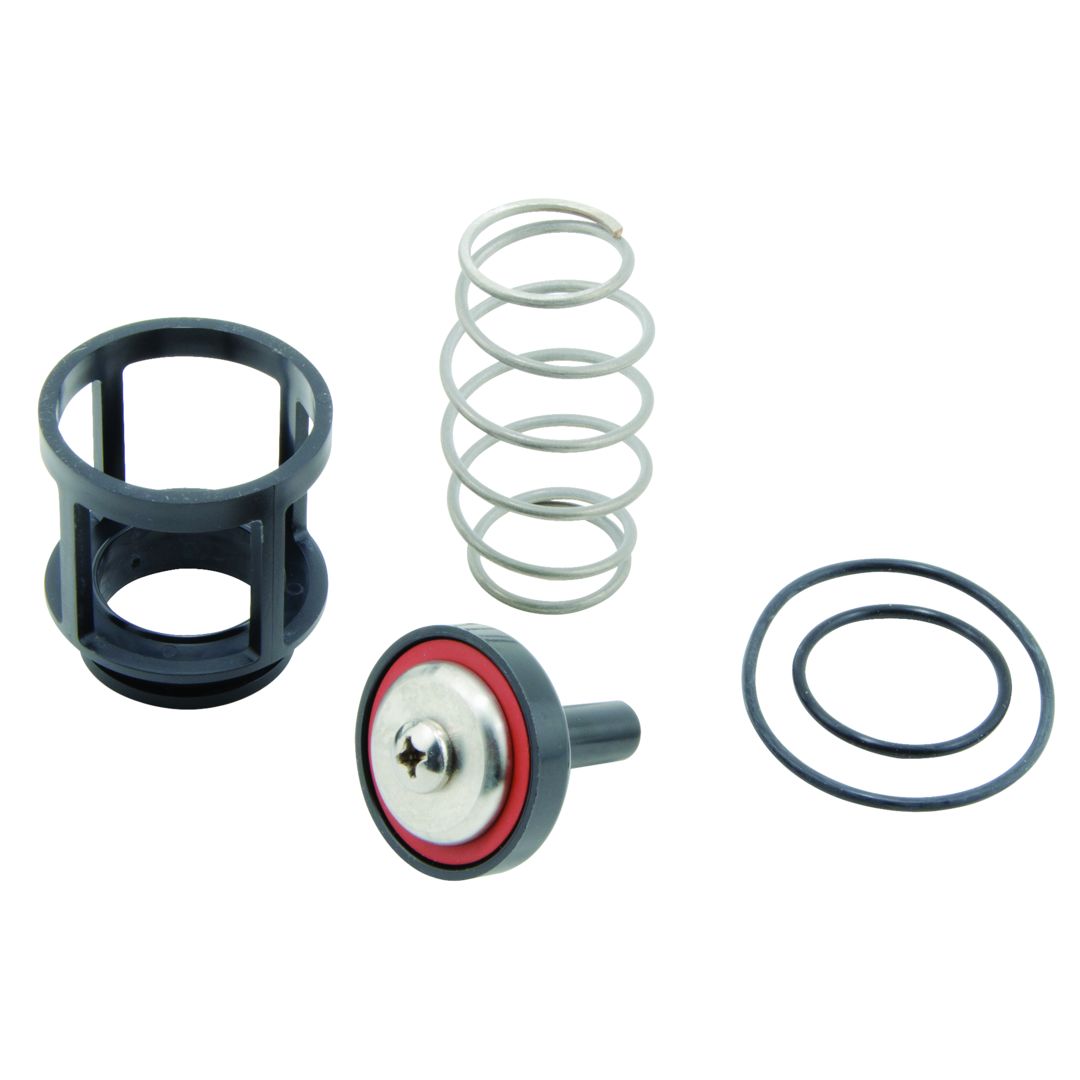

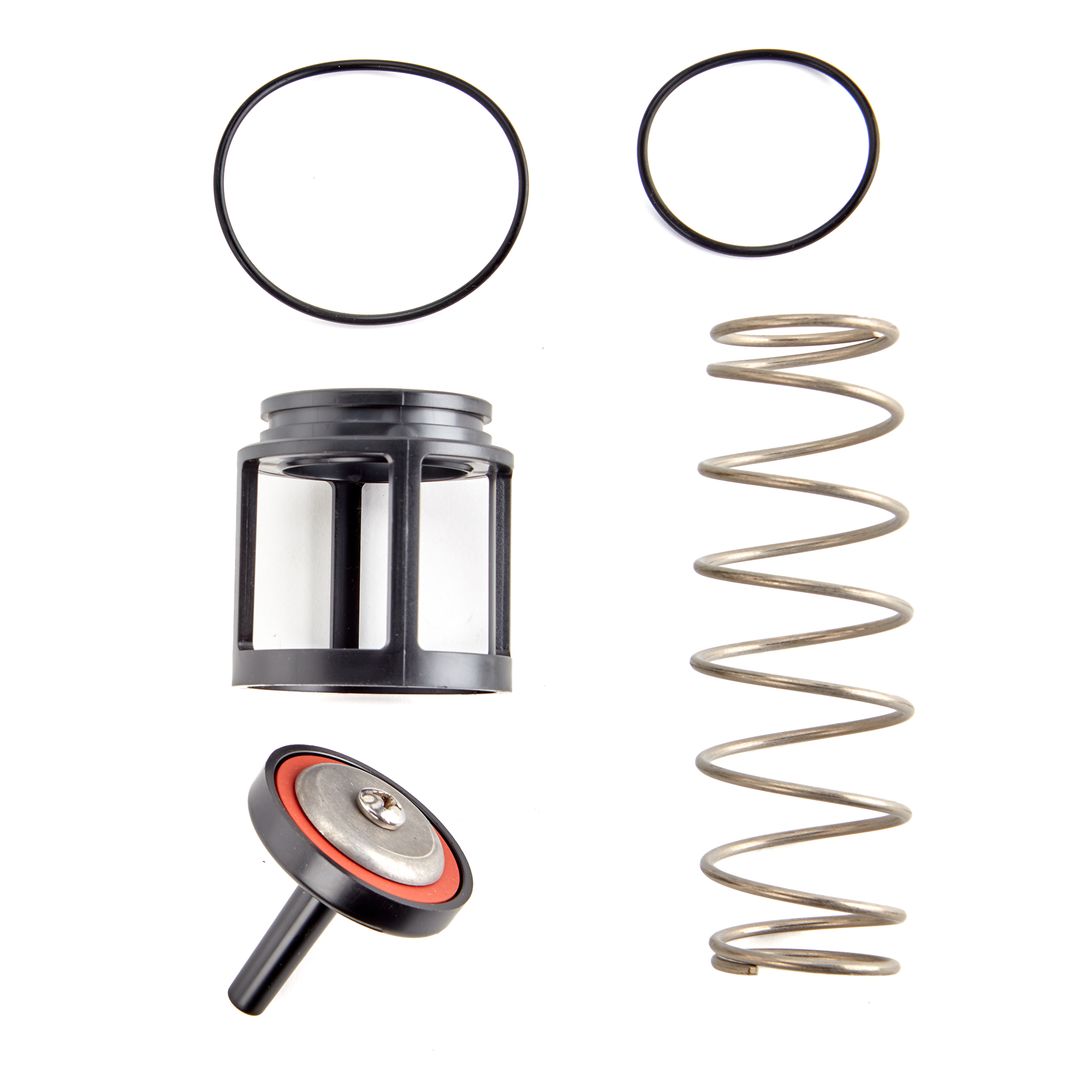

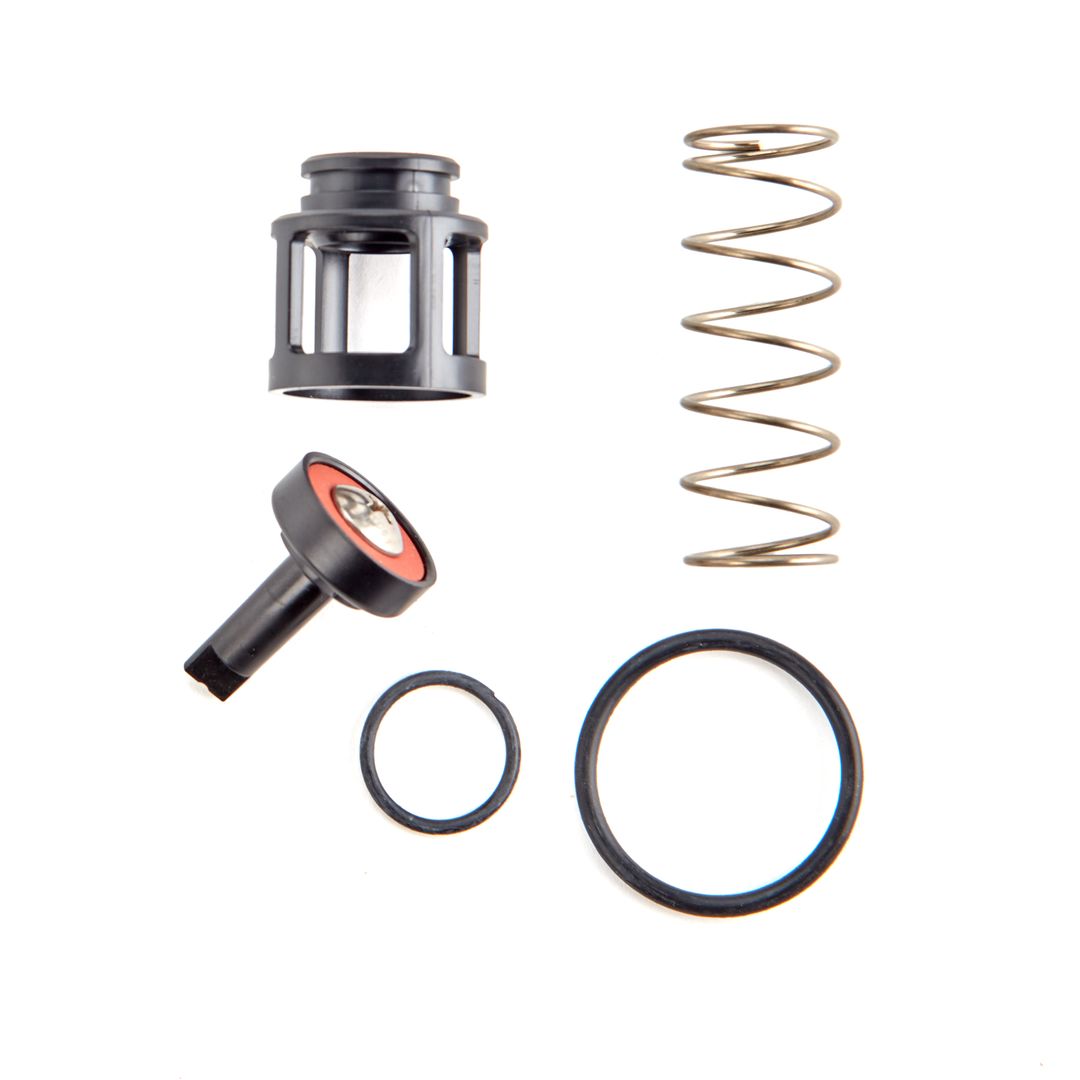

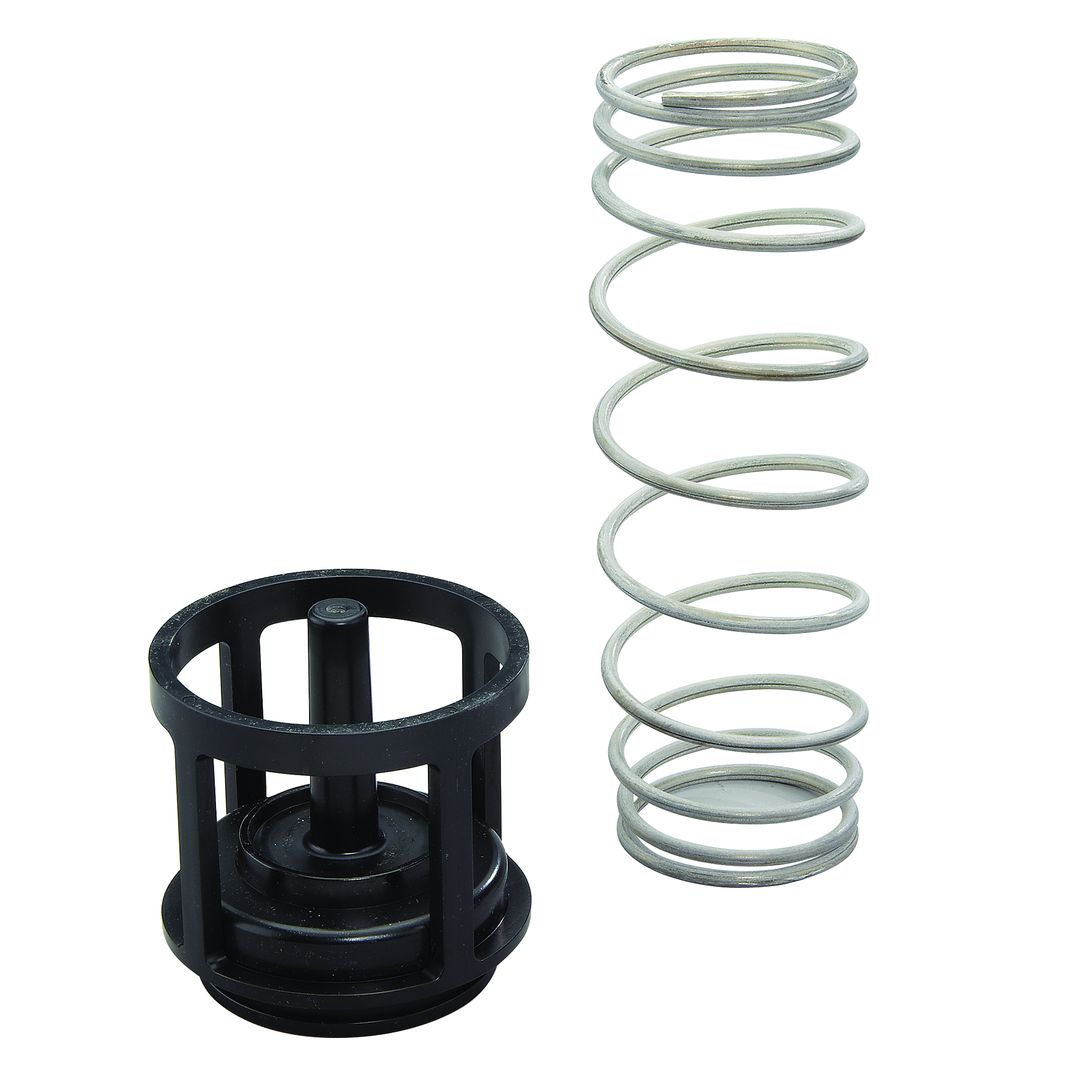

Select options below to identify the UPC, Order Code, and Repair Kit for a specific 919
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
