LF709
Lead Free* Double Check Valve Assembly Backflow Preventers, Cast Iron, Sizes: 2 1/2 to 10 IN

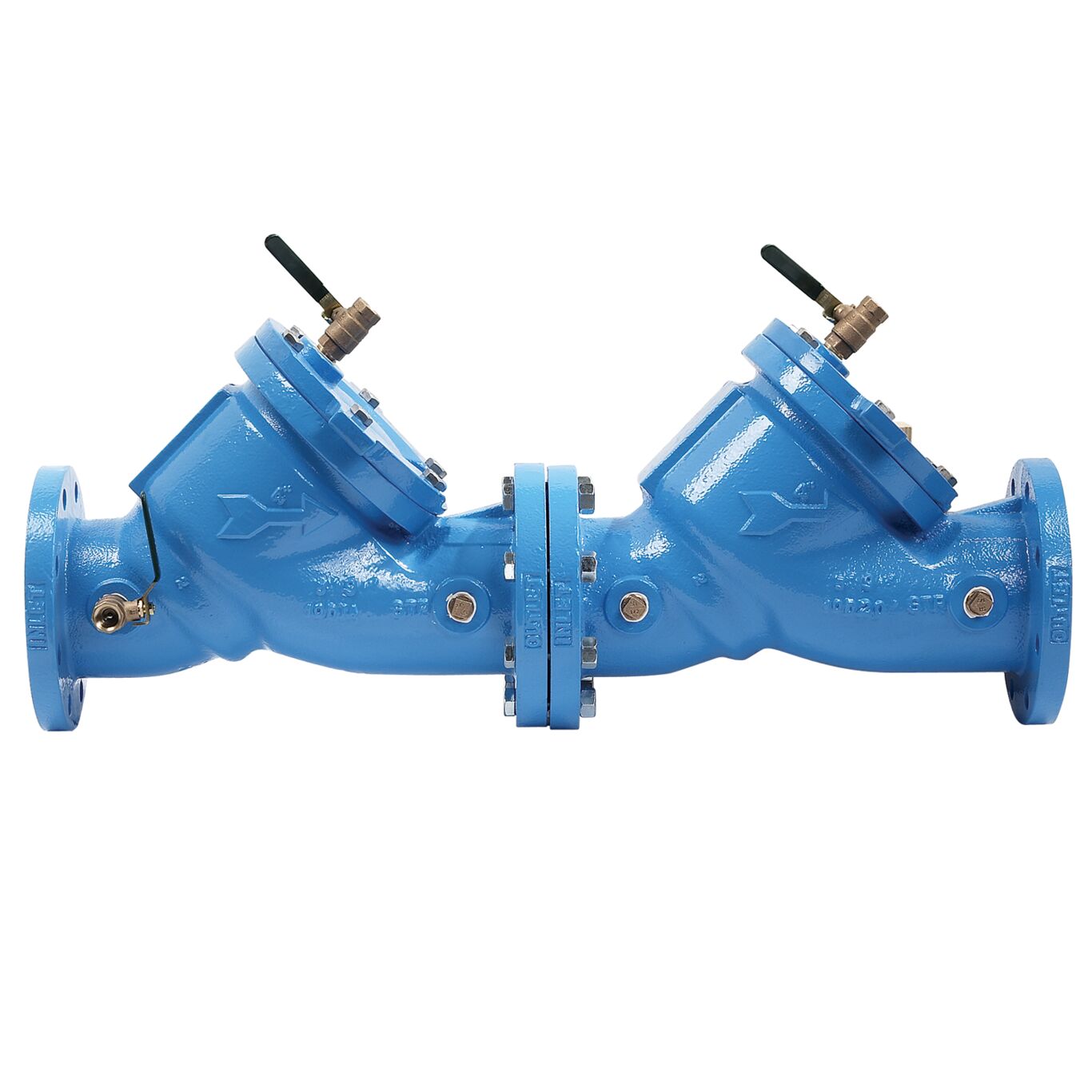

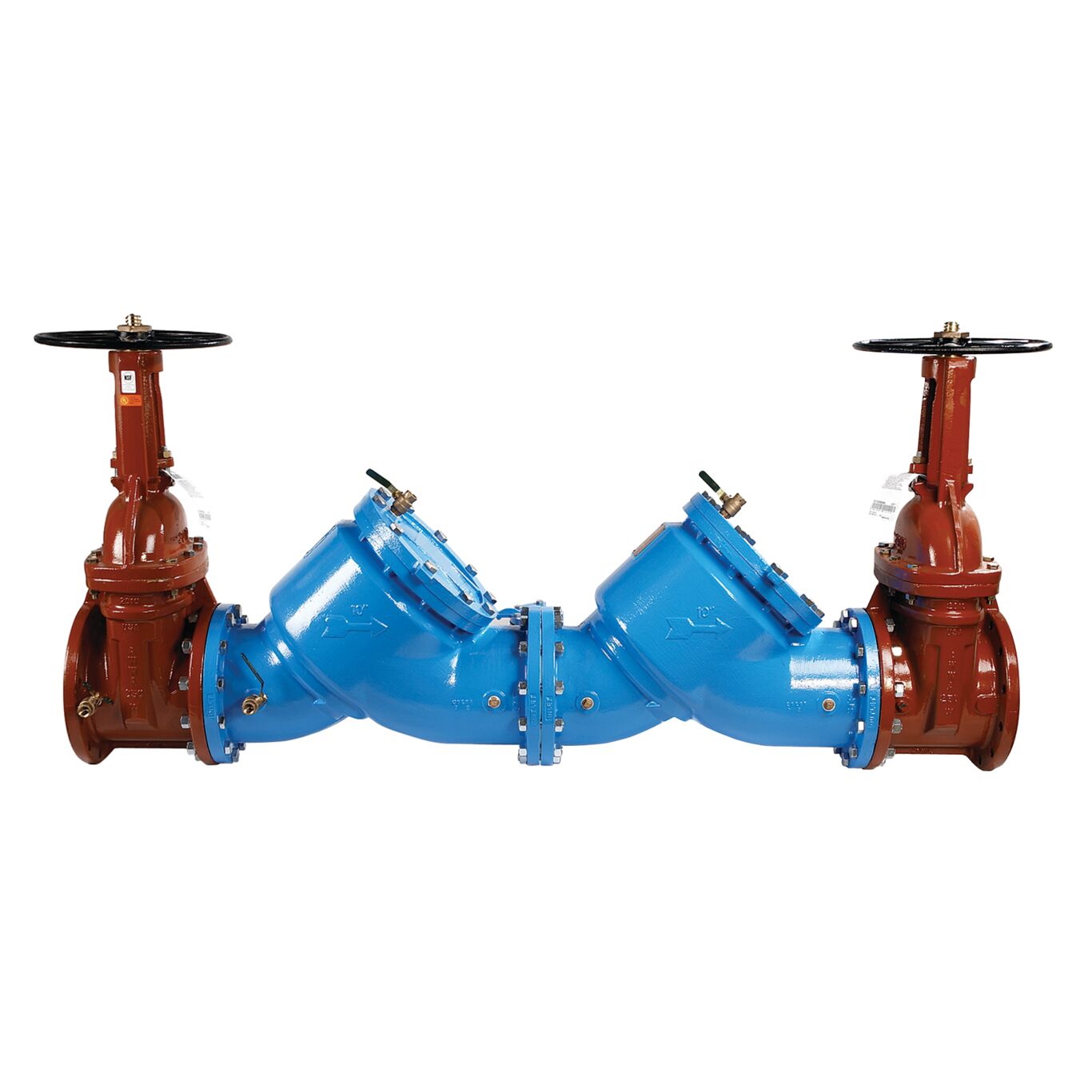

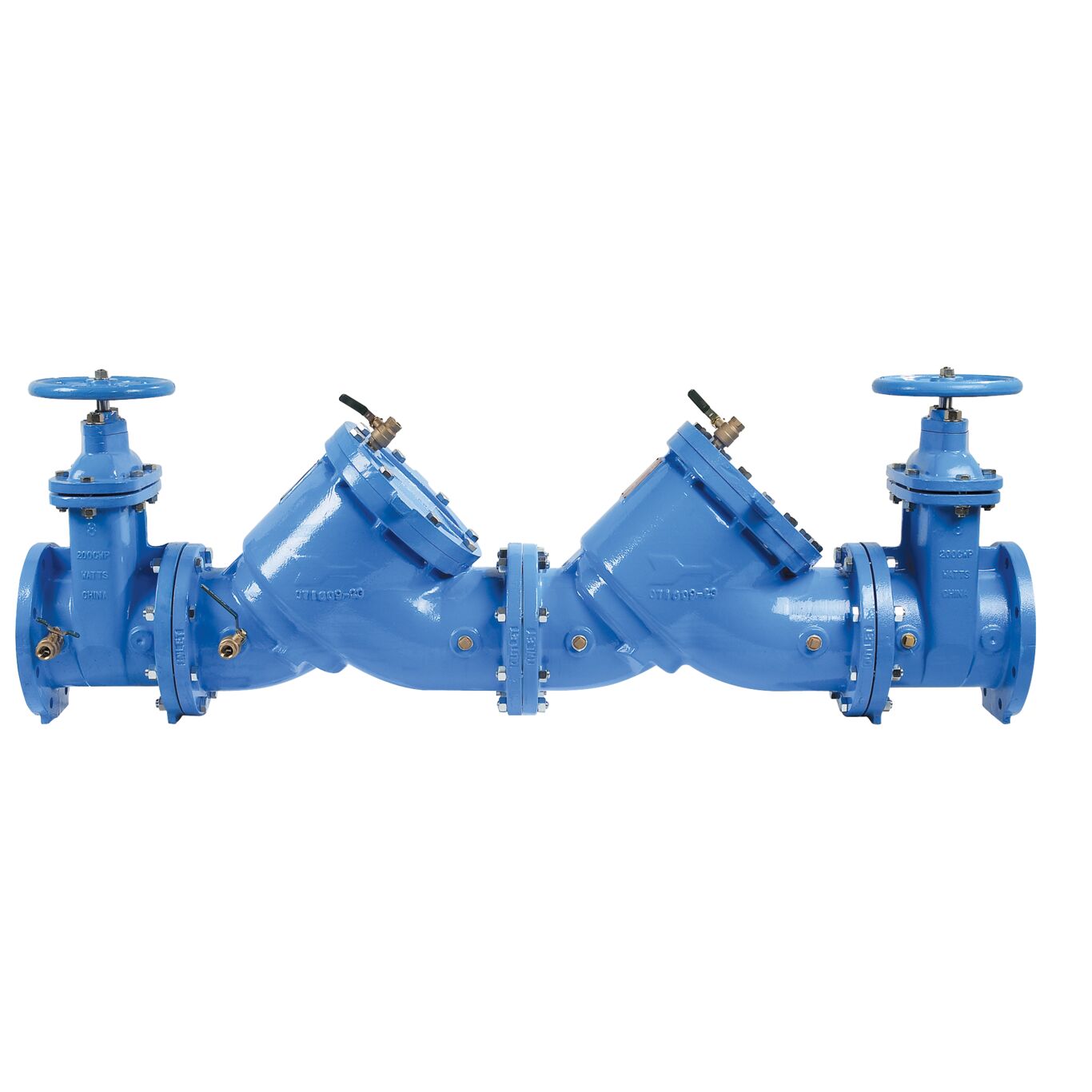

Series LF709 Lead Free* double check valve assembly backflow preventers help stop the reverse flow of polluted water from entering into the potable water supply. This series has a modular check design for easy maintenance and is ideal at referenced cross-connections identified in non-health hazard applications. The series features Lead Free* construction to comply with Lead Free* installation requirements. Maximum working pressure is 175 psi (12.06 bar).
ArmorTek™ coating technology is applied in construction to resist corrosion due to microbial induced corrosion (MIC) or exposed metal substrate.

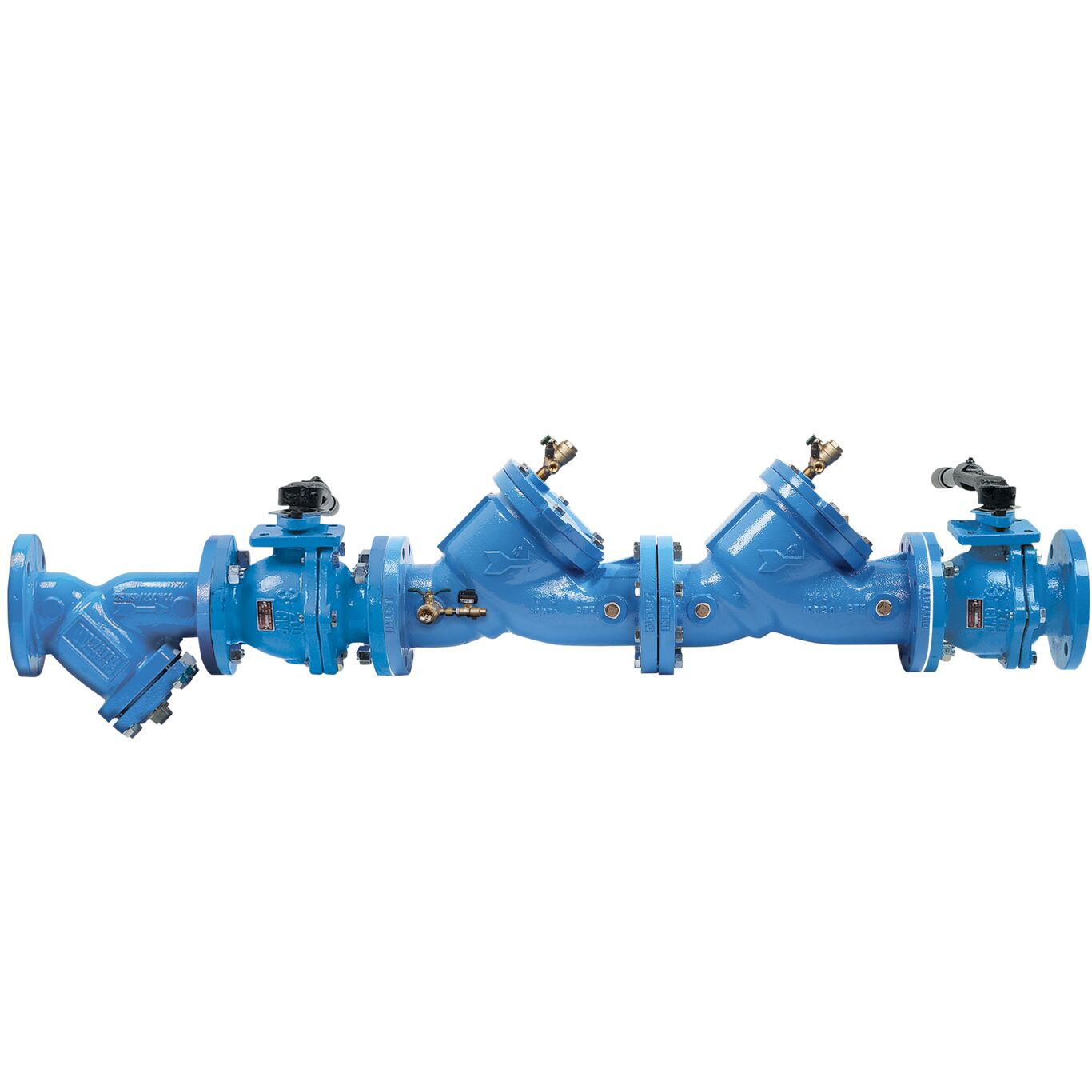

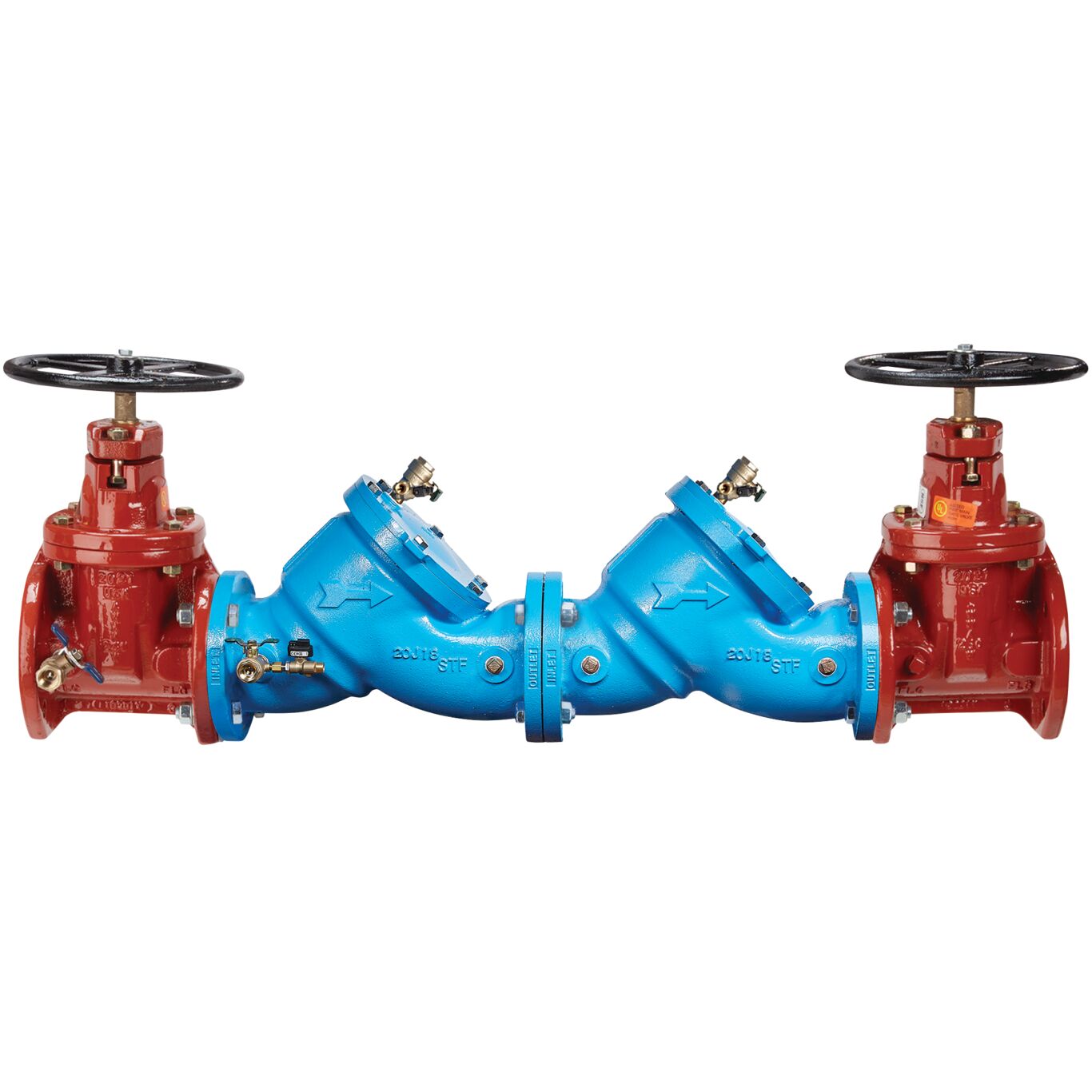

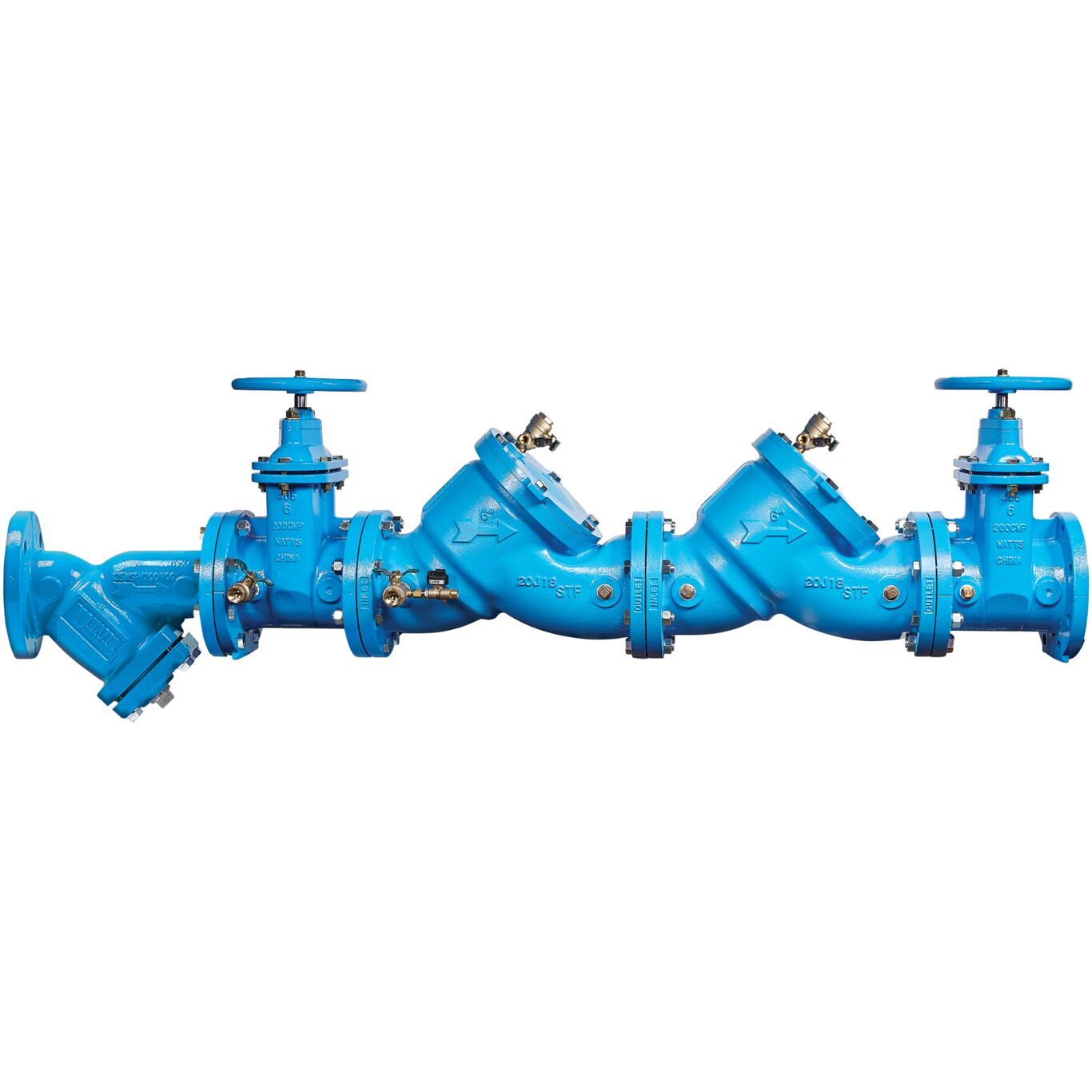

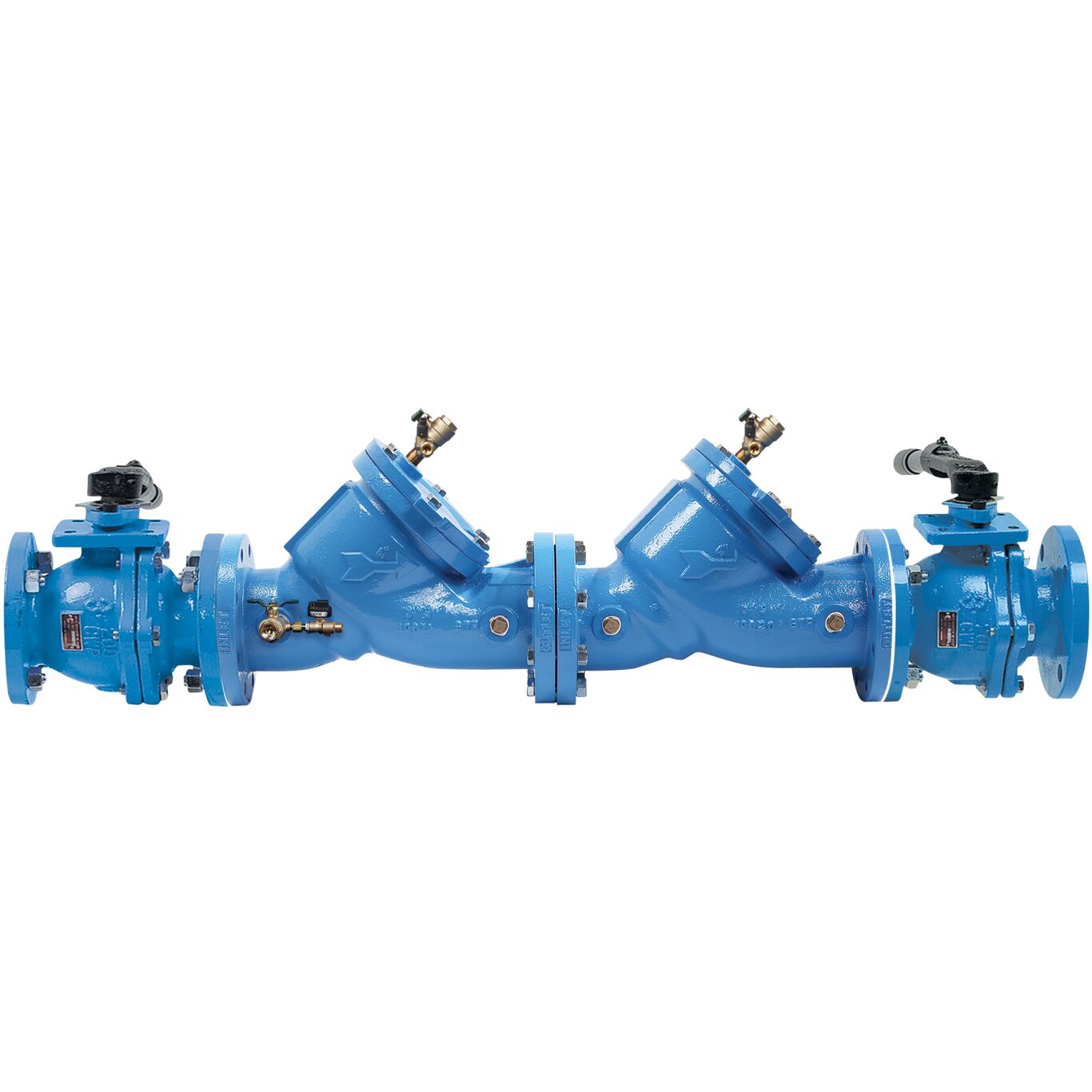

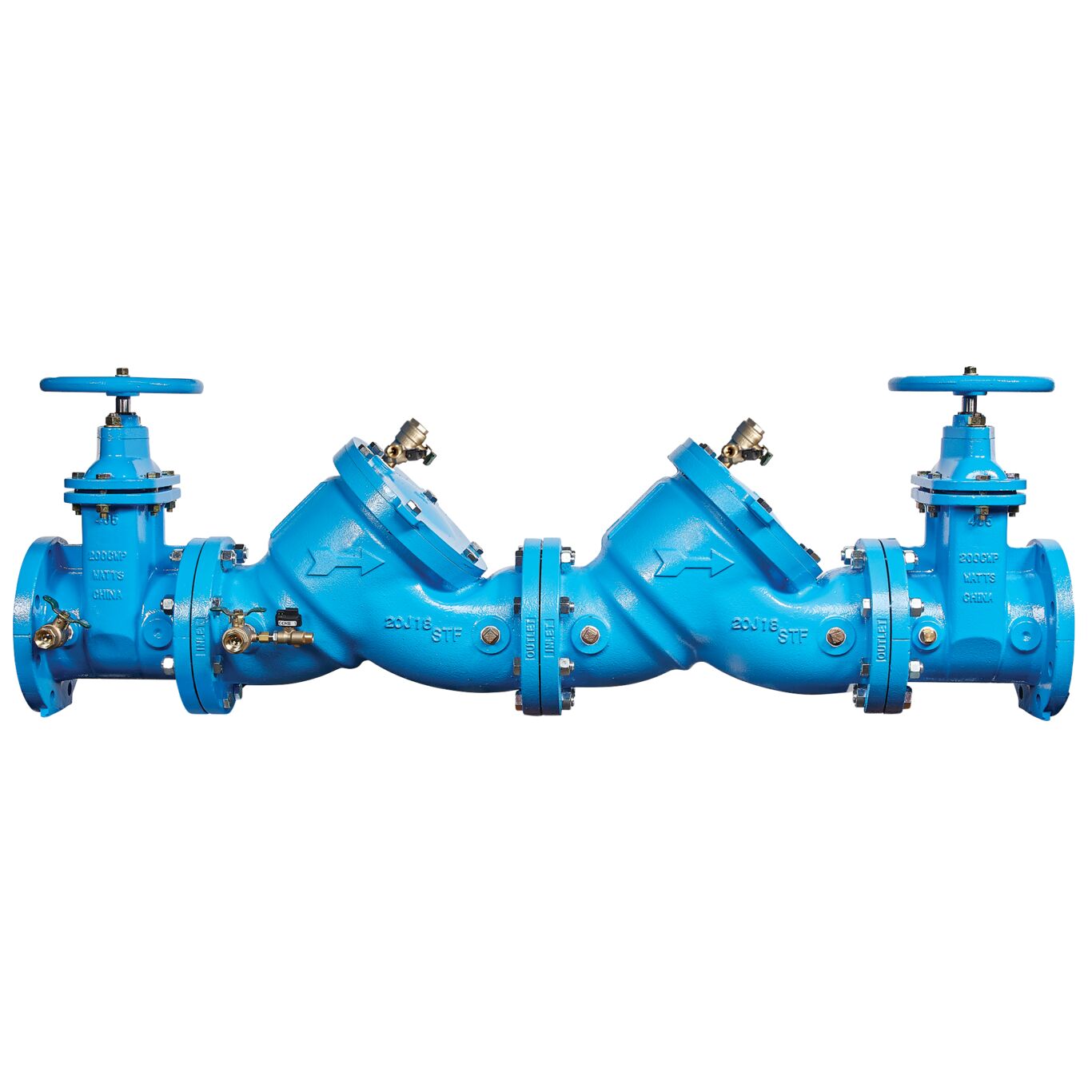

The IOT model features sensor technology integrated on test cocks to measure pressure fluctuations at three points. Pressure measurements allow assessment of the performance of the backflow preventer assembly. An add-on monitoring connection kit is required to collect, convert, and transmit data values to a building management system.
To learn more visit: Series LF007-LF709 with Pressure Monitoring
Features
- Maximum flow rate at low pressure drop
- Replaceable stainless steel seats
- Modular, compact design to facilitate assembly and maintenance
- Captured spring assemblies for safety
- Advanced ArmorTek™ coating technology to resist corrosion of internals
- Pressure sensors on IOT models, activated with add-on monitoring connection kit
- Lead free* top-mounted test cocks
- Approved for vertical flow-up installation
Literature
-
- Brochure - Backflow Prevention and Flow Control Plumbing
- Brochure - Backflow Prevention and Flow Control Plumbing (Spanish)
- Installation Instructions - 709, LF709, 709DCDA
- Price List - Backflow Prevention Repair Kits & Service Parts
- Specification Sheet - LF709
- Specification Sheet - NYC Backflow Specialty Items
