562

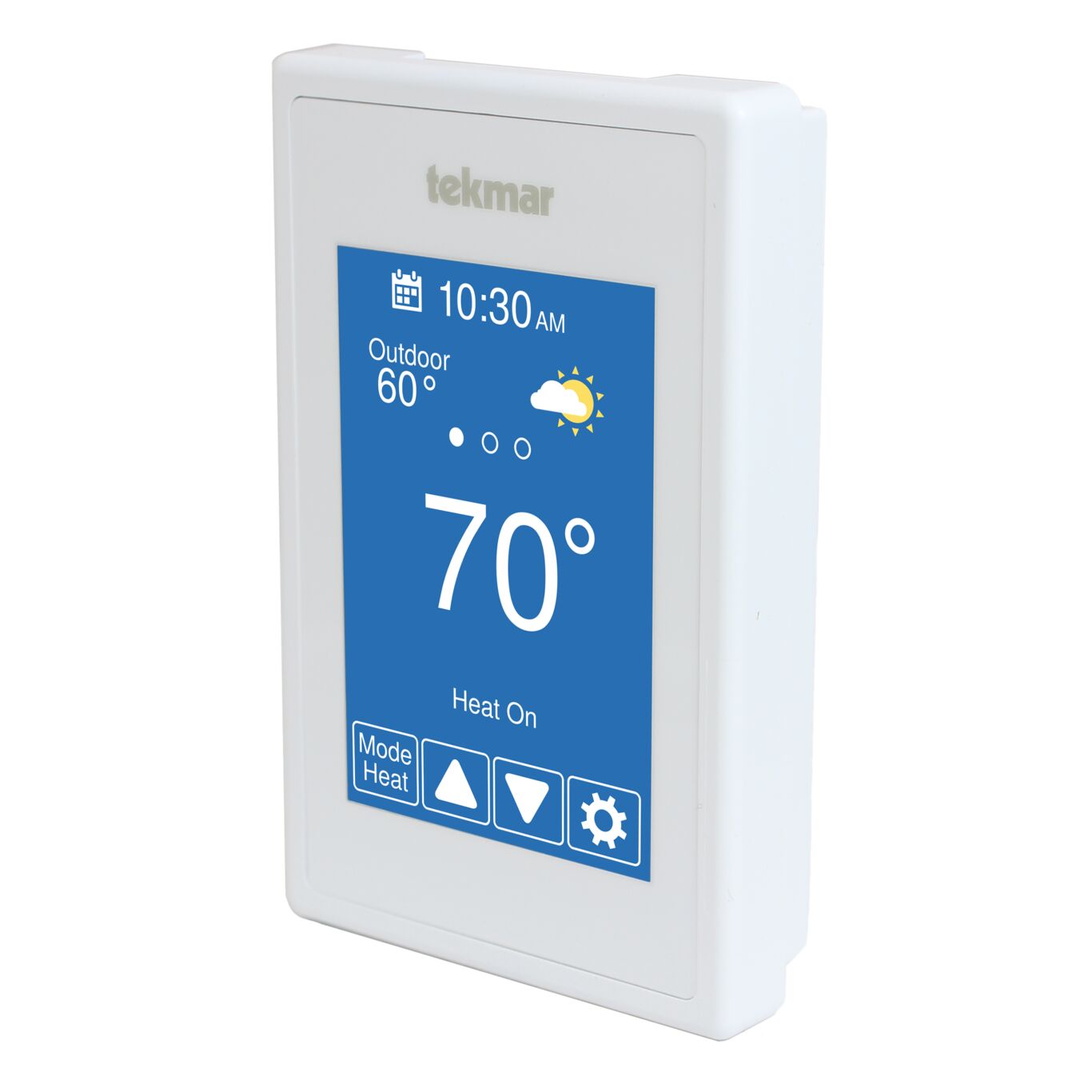

Product Image - 562
Product Image - 562
Product Image - 562
×

Part of the Thermostats Series

Ordering Code: 562

UPC: 779655056204

WiFi Thermostat, Two Stage Heat, One Stage Cool, Fan



Quick Product Search


Quick links:

Control Selector

tekmar Home




Watts Home App

The WiFi Thermostat 562 operates a two stage heating, one stage cooling system and a fan. When connected to the Internet, the Watts(R) Home mobile app allows the thermostat to be controlled remotely. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. The thermostat supports radiant floor heating and optional floor sensors can be installed to enhance comfort and protect floor coverings.

Features

  • Mobile app for iOS and Android, supports optional floor sensor
  • Automatic software updates, outdoor temperature
  • Local weather, Email error and warning notifications
  • Time clock updated from Internet, 7 day programmable schedule
  • Away energy savings mode, early start
  • Energy monitoring
  • English/French/Spanish languages
  • 3.5 inch color touchscreen
  • Selectable background colors
Specifications
Agency Approvals Meets Class B: ICES & FCC Part 15
Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Control Type Microprocessor control, this is not a safety (limit) control
Dimensions 4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm)
Enclosure Material White PVC plastic
Enclosure NEMA Rating NEMA 1
Power Supply 15 to 30 V (ac/dc), 2 VA, Class 2
Relay 30 V (ac/dc), 2 A, Class 2 circuits
Sensor NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
