519

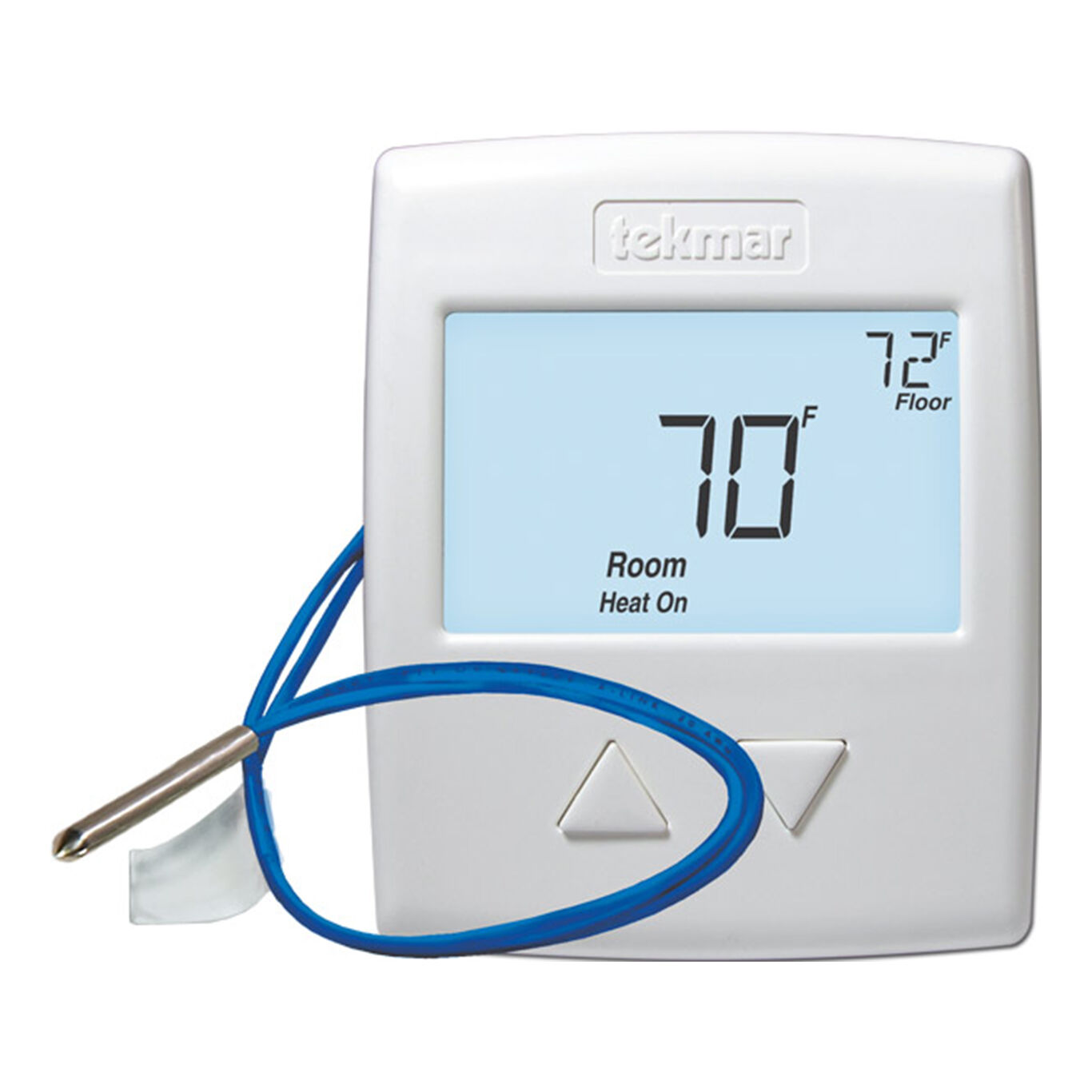

Product Image - 519
×

Part of the Thermostats Series

Ordering Code: 519

UPC: 779655051902

Radiant Thermostat, One Stage Heat (Includes Slab Sensor 079)



Quick Product Search


Quick links:

Control Selector

tekmar Home




The Radiant Thermostat 519 accurately controls the room and/or floor temperature for a hydronic heating zone using Pulse Width Modulation (PWM) technology. Simple up and down buttons and a display with large type make this thermostat easy to read and use. A Slab Sensor 079 is included to measure floor temperature to protect the floor from overheating and enhance comfort. This easy to install thermostat is a direct replacement for the tekmar Thermostat 509. An optional Adaptor Plate 012 is available which allows the thermostat to be installed onto a single gang electrical box.

Features

  • Auto heating cycle
  • Radiant floor heating
  • Pulse width modulation
  • Floor and air temperature control
  • Outdoor and floor temperature display
  • Backlight
  • Freeze protection
  • Includes slab sensor 079
Specifications
Agency Approvals Meets Class B: ICES & FCC Part 15
Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Control Type Microprocessor control, this is not a safety (limit) control
Dimensions 3-11/16" H x 3" W x 15/16" D (94 x 76 x 24 mm)
Enclosure Material White PVC plastic
Enclosure NEMA Rating NEMA 1
Power Supply 10 to 30 V (ac/dc), 50/60 Hz, 1.8 VA standby, 56 VA max fully loaded, Class 2
Relay 30 V (ac/dc) 2 A, Class 2 circuits
Sensor NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
