681

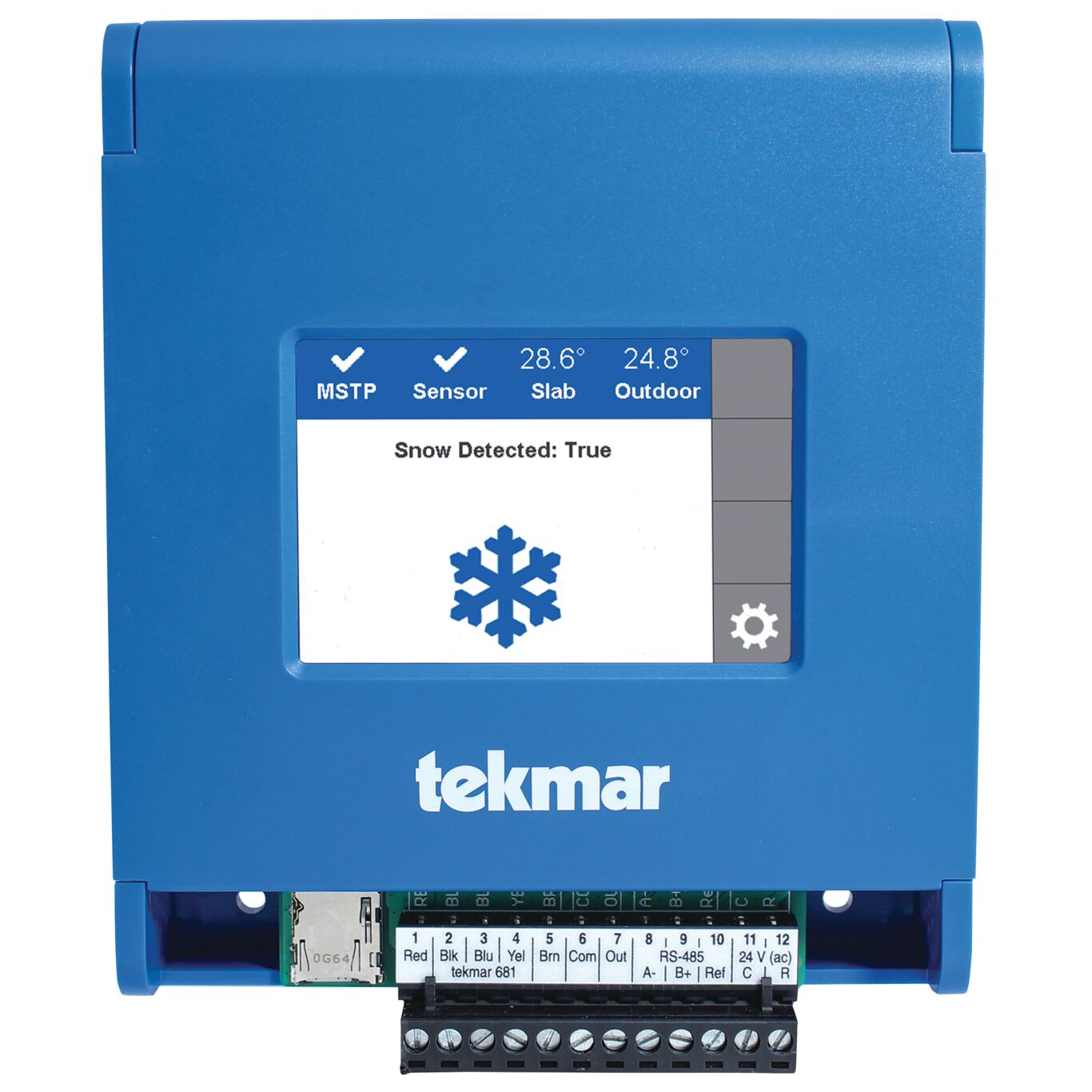

Product Image - BACnet Snow/Ice Sensor Interface 681

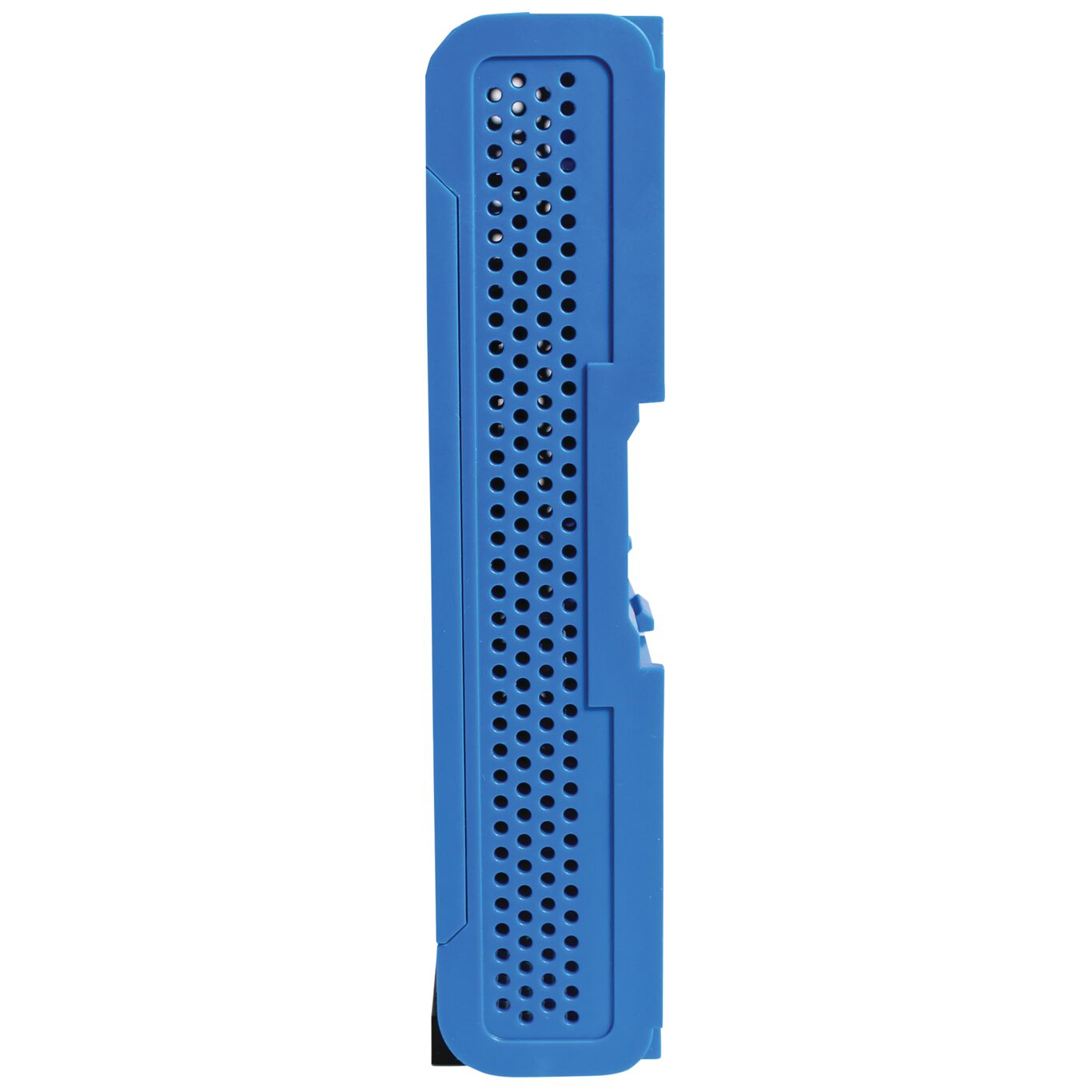

Product Image - BACnet Snow/Ice Sensor Interface 681 (Side)
×

Part of the Snow Melting Controls Series

Ordering Code: 681

UPC: 779655068108

BACnet Sensor Interface, Snow/Ice Sensor

The BACnet Snow/Ice Sensor Interface 681 is designed to measure the presence of snow/ice and interfaces with the Building Automation System (BAS) to operate electric or hydronic snow melting systems. The 681 uses tekmar® sensor technology to automatically detect snow or ice, and upon detection communicates with the BAS through BACnet MS/TP. This operation allows the BAS to automatically turn on/off and provide operational status for a snow melting system. The 681 is suitable for any snow melting commercial application including, hospitals, schools, airports, ski resorts, business entrances, driveways, loading docks, and shopping malls.

Features

  • Automatic snow / ice detection
  • BACnet MSTP communication
  • Supports both in-slab and retrofit aerial sensors
  • Warm weather shut down
  • Cold weather cut off
  • Slab target temperature
  • Error codes
  • Melt pending
  • Supports both DIN rail and backplate mount
Specifications
Agency Approvals FCC Part 15, BTL Listed
Ambient Conditions Minus 4 to 122 degrees F (-20 to 50 degree C), less than 90 percent RH non-condensing, outdoor use permitted when used in NEMA 3 enclosure
Communications Type BACnet MSTP
Control Type Microprocessor control, this is not a safety (limit) control
Dimensions 6.34" (161mm) H x 5.13" (130mm) W x 1.30" (33mm) D
Display 3.5" color touchscreen
Enclosure Material PC+ABS plastic
Enclosure NEMA Rating NEMA 1
Power Supply 24 V (ac), 50 and 60 Hz
