072
×
![]()
Part of the Snow Melting Controls Series
Ordering Code: 072
UPC: 779655007206

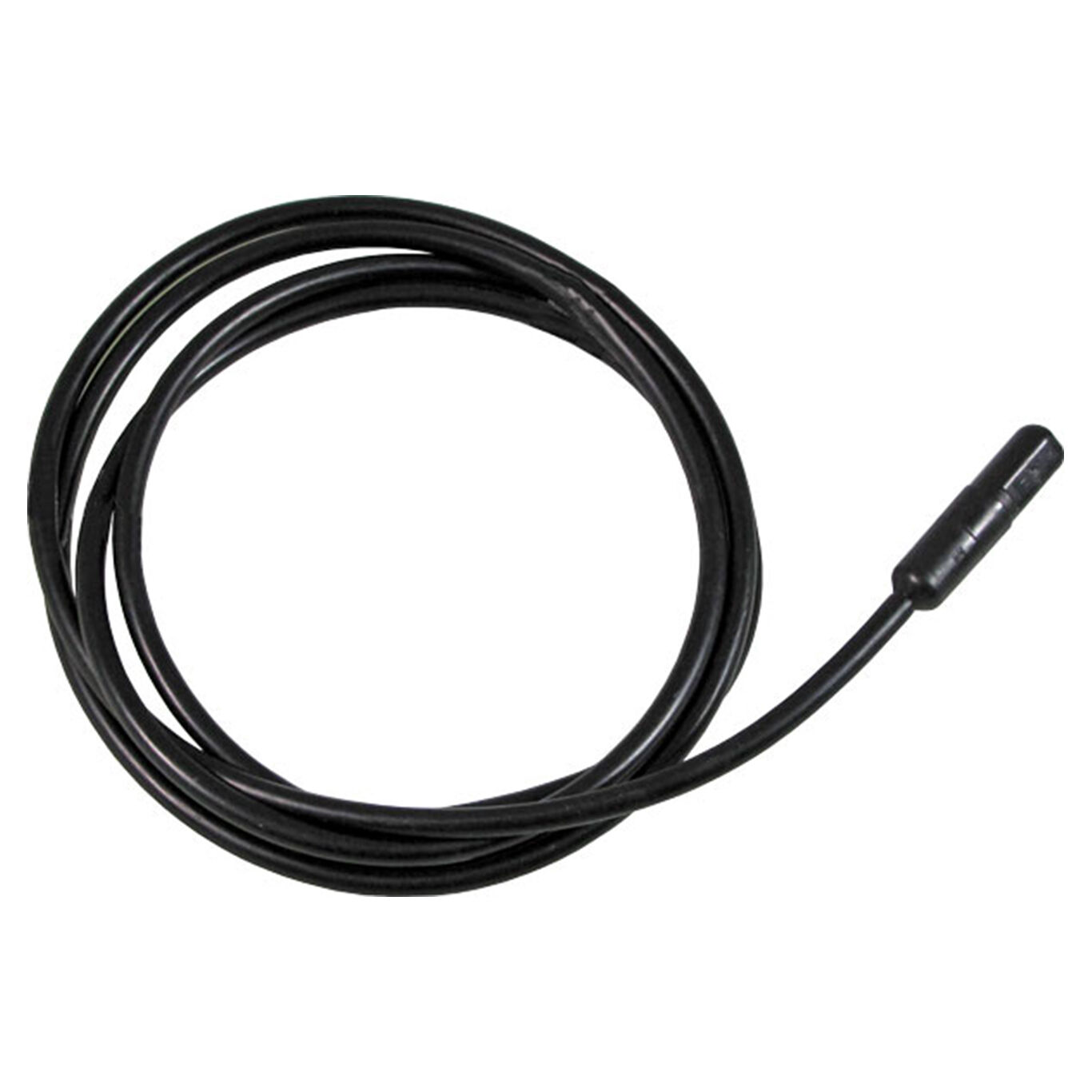

Slab Sensor, 20 FT (6 m) wire
The Slab Sensor 072 is designed to measure temperature in outside snow melting slabs. It has a high density polyethylene (HDPE) sleeve which is designed for use in conduits, soils, or concrete, as it is suitable for direct burial. This product is supplied with 20 FT (6 m) of 2 conductor cable.
Features
- Water resistant
- 10K thermistor
- 20 ft (6 m) cable
- Designed for use in conduits, soils, or concrete
| Specifications | |
|---|---|
| Agency Approvals | CSA C US |
| Dimensions | 3/8" OD x 1 1/2" (10 mm OD x 38 mm) |
| Operating Range | -60 to 140 degrees F (-51 to 60 degrees C) |
| Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
| Sensor Material | HDPE sleeve, 20 FT (6 m) HDPE jacketed wire |
