486

Part of the Control Accessories Series

Ordering Code: 486

UPC: 779655048605

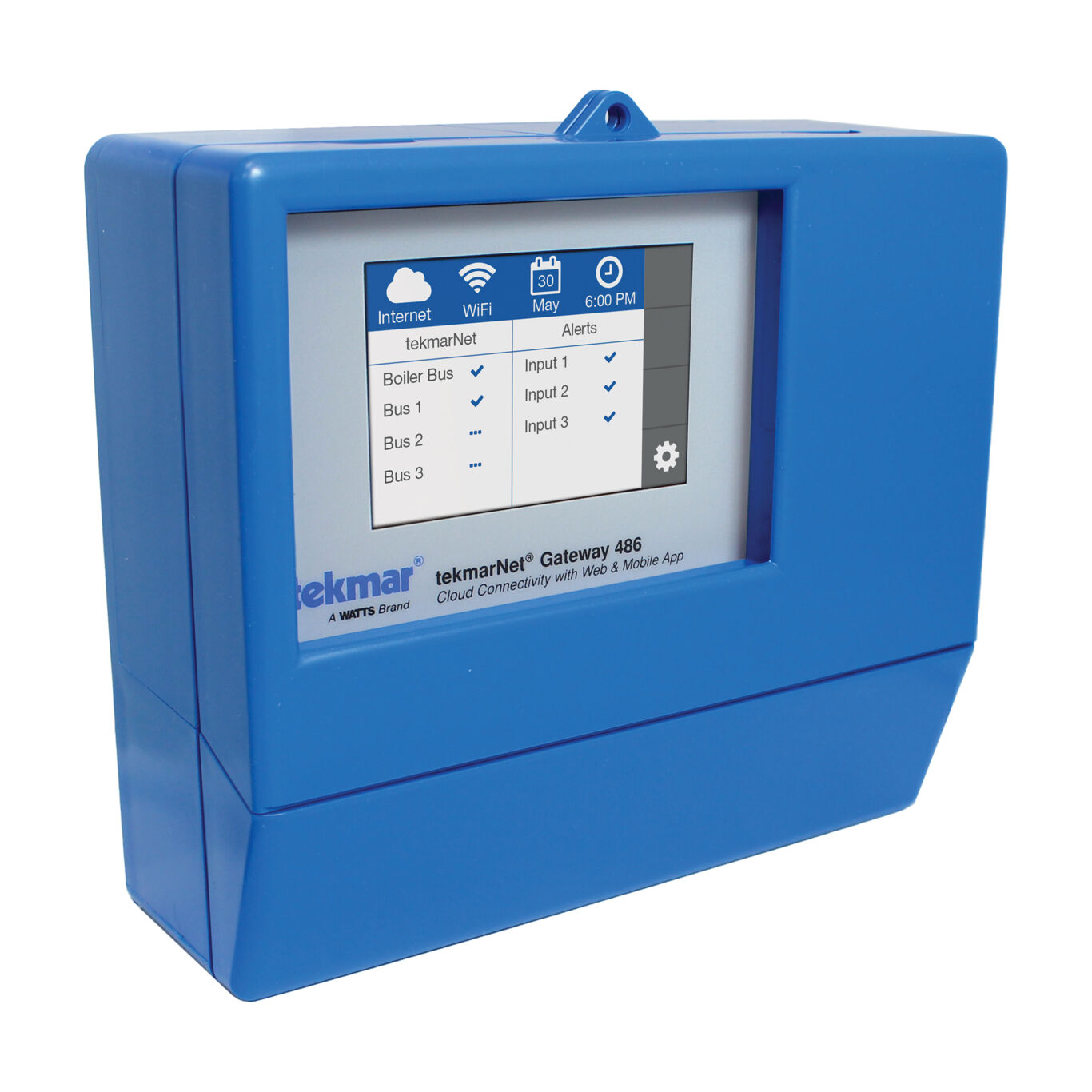

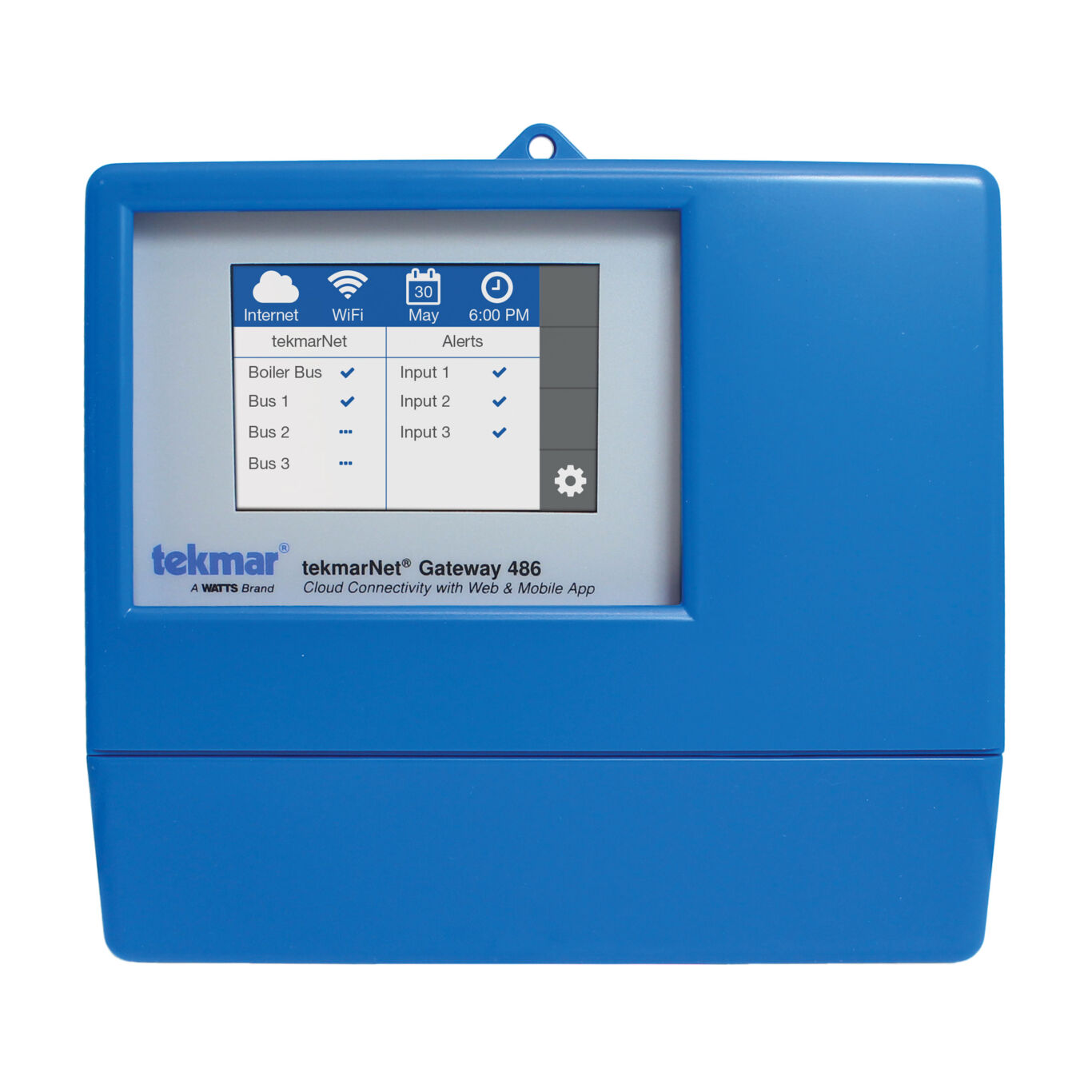

tekmarNet Gateway, Cloud Connectivity with Web and Mobile App

Quick links:

Control Selector

tekmar Home

tekmar Gateway App

  • Remotely control up to 96 thermostats, and the hot water heating system
  • Includes visualizations with building location map, floor plans and mechanical schematic
  • Graph and export up to a year of logged system data
  • Supports multiple user accounts
  • Text and email error notifications and history log
  • Includes three external alert demands for boiler room equipment monitoring
  • Mobile app for iOS and Android and compatible with web browsers
  • WiFi or Ethernet connection to Internet
Specifications
Agency Approvals Class B: ICES & FCC Part 15
Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH maximum 90 percent, non-condensing
Control Type Microprocessor-based, this is not a safety (limit) device
Dimensions 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
Enclosure Material Blue PVC plastic
Enclosure NEMA Rating NEMA 1
Power Supply 5 V (dc) regulated, 1 A, Class 2, FCC certified
