482
×
![]()
Part of the Control Accessories Series
Ordering Code: 482
UPC: 779655048209

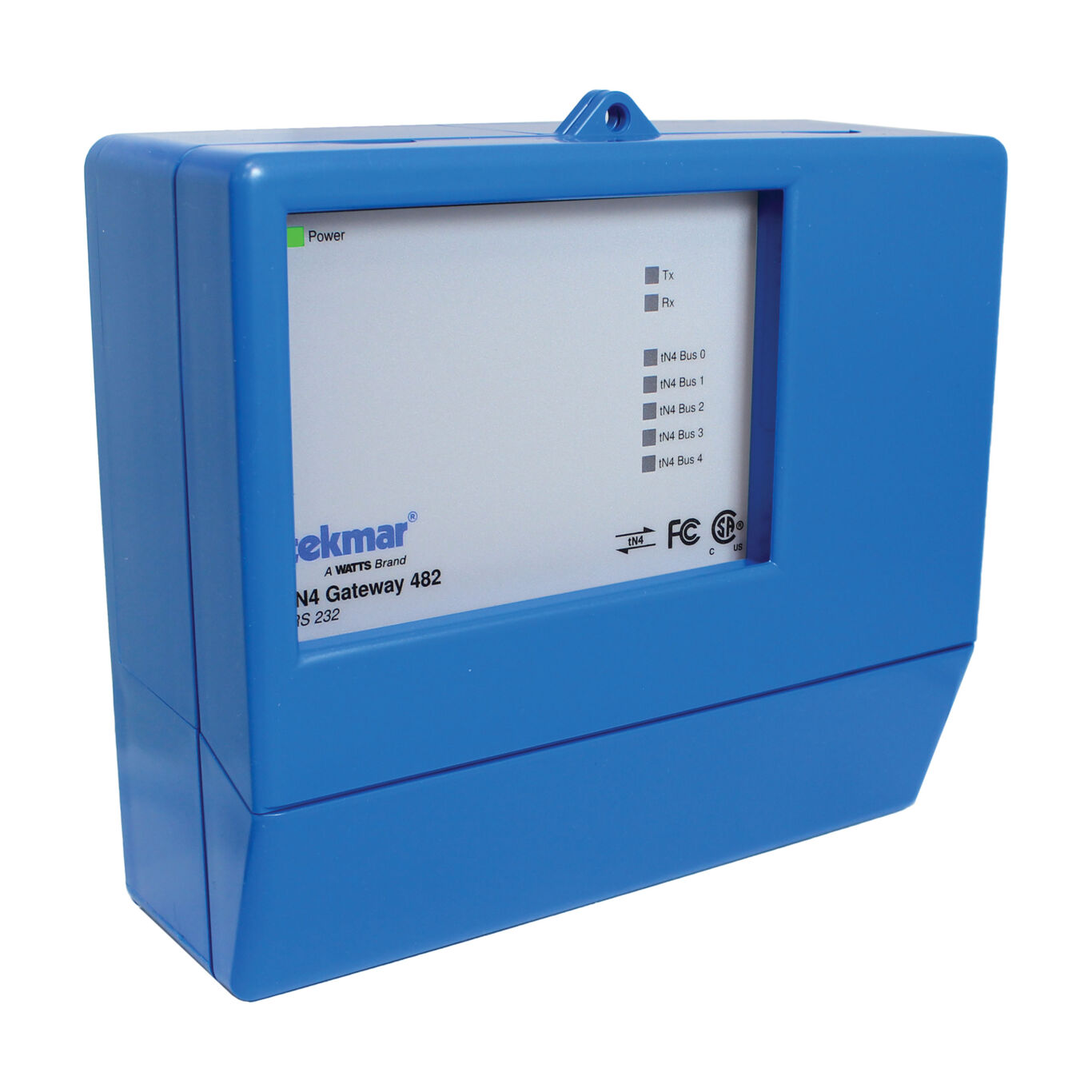

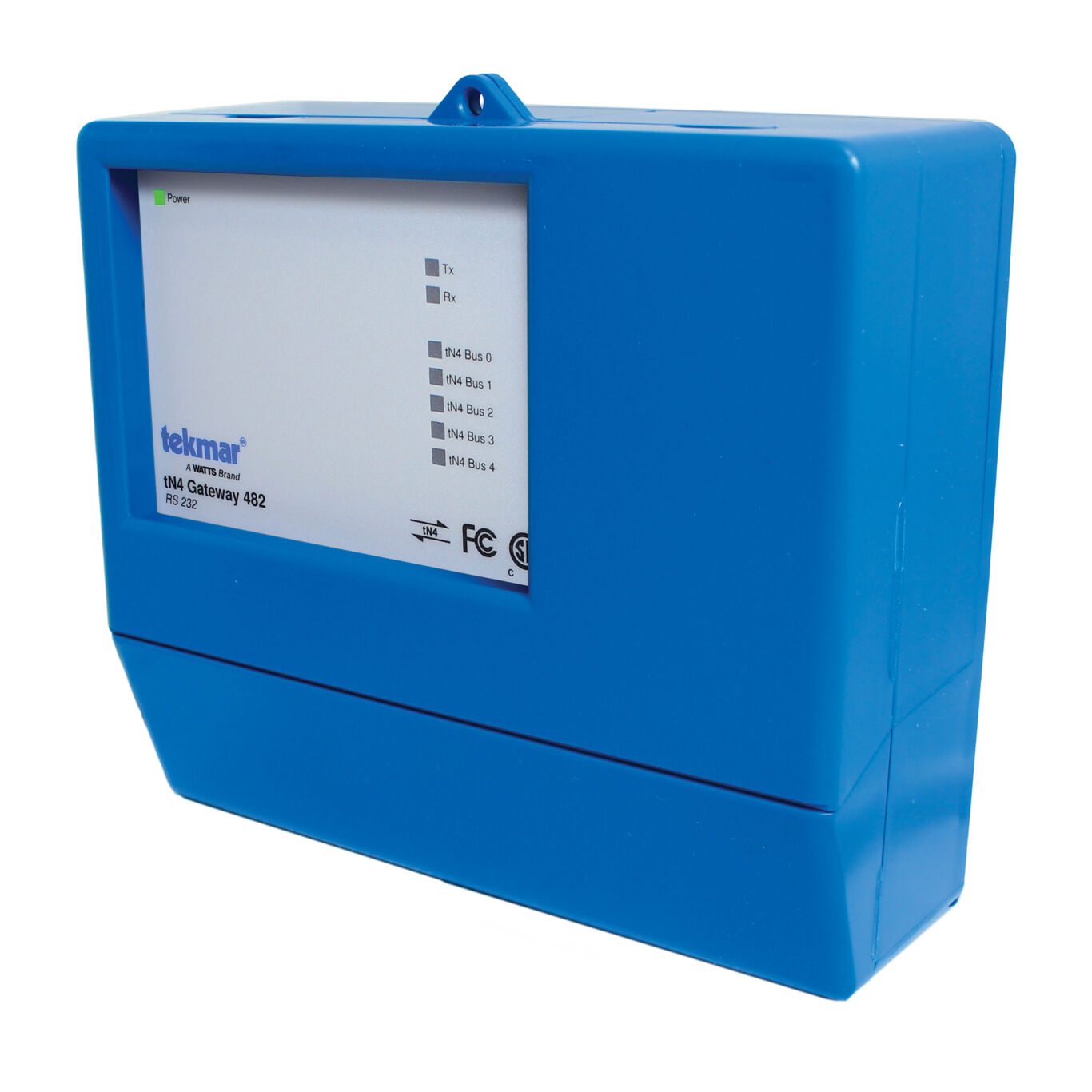

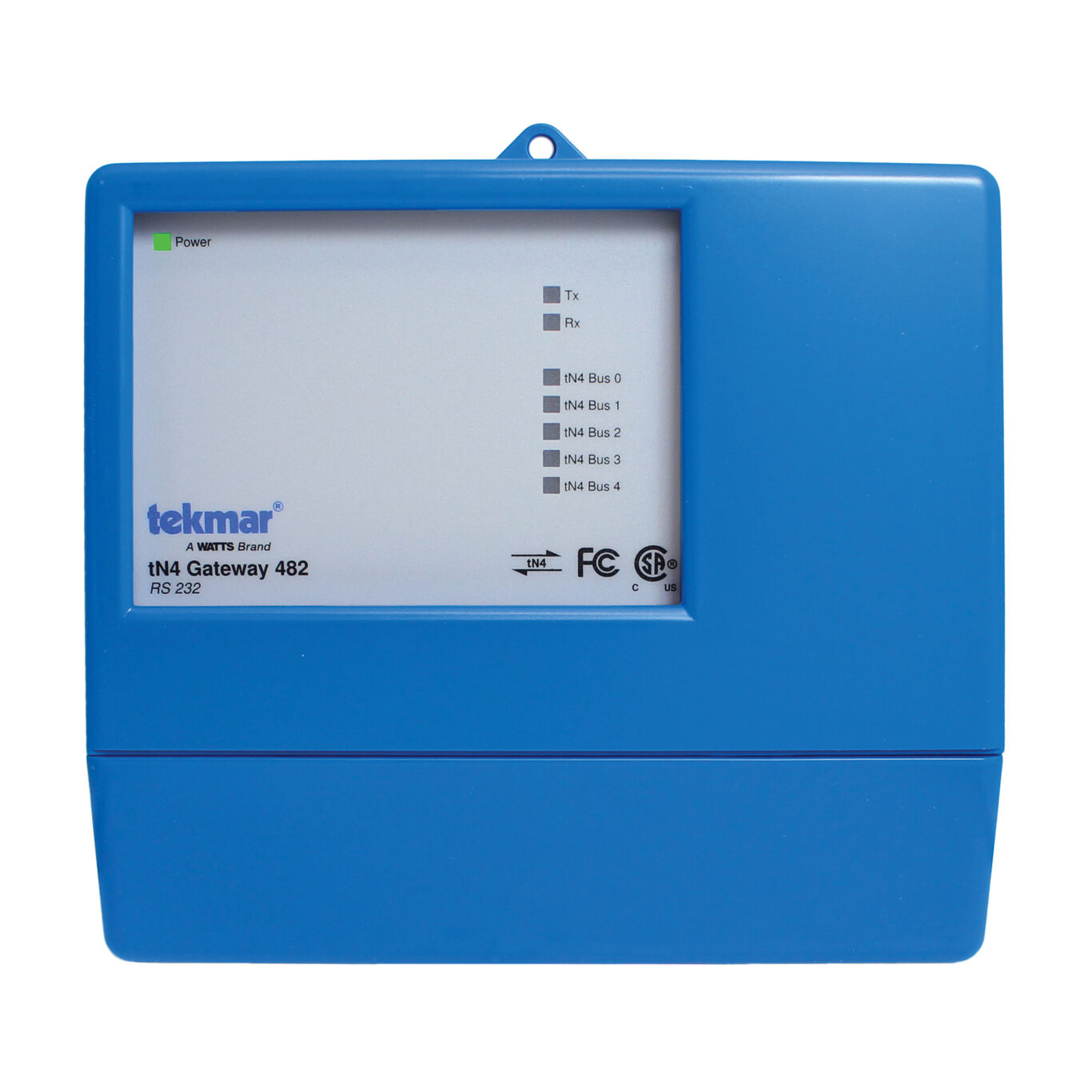

tN4 Gateway, RS232
The tekmarNet (R) 4 Gateway 482 provides RS 232 serial communication between tekmarNet (R) thermostats and third party home automation systems. The third party automation system is able to monitor and adjust any of the thermostat's heating, cooling, and ventilation fan settings. Through the use of third party device drivers written for this product, tekmarNet (R) systems are fully integrated into home automation systems.
Features
- Drivers available for leading home automation systems
- Indoor use only, 32 to 122°F (0 to 50°C)
- tekmarNet (R) 4 and tekmarNet (R) 2 compatible
- CSA C US approved for US and Canada
| Specifications | |
|---|---|
| Agency Approvals | CSA C US, meets ICES & FCC regulations for EMI / RFI |
| Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 92 percent to 104 degrees F (40 degrees C), down to 50 percent above 104 degrees F (40 degrees C), 9842 feet (3000 m) maximum altitude |
| Control Type | Microprocessor PID control, this is not a safety (limit) control |
| Dimensions | 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm) |
| Enclosure Material | Blue PVC plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Power Supply | 115 V plus / minus 10 percent, 60 Hz, 45 mA |
Literature
-
- Brochure - Communicating Control Systems (Apr 2012 - Jan 2014)
- Installation and Operation - 482 (Feb 2016 - Present)
- Job Record - 482 (Jan 2012 - Present)
- SB075 - tN4 Gateway 482 Update to Include New Control Settings (Sep 2013 - Present)
- SB083 - Maximum Number of Thermostats on a tekmarNet Bus (Jan 2018 - Present)
- Specification Sheet - 482 (Jan 2012 - Present)
- tekmar Expands Integration with 3rd-Party Home Automation Systems (Sep 2013 - Present)
- tekmar is Now Compatible with Seven Home Automation Systems (Sep 2011 - Present)
- tN4 Gateway 482 - Custom Integration Tools (Jan 2017 - Present)
- tN4 Gateway 482 - Firmware Update (Jan 2017 - Present)
- Visio and AutoCAD Applications - 482
